Description
Brand - OAV
Item Number - OAVRL75MX OAV
Category - X-Spin Roller Air Bearing
Housing Material/Finish - Aircraft Quality Aluminum
Porous Material - OAV Carbon Graphite
Pressure Port Threads - TBD
Imperial :
Minimum Input Pressure (psi) - 20
Maximum Input Pressure (psi) - 100
Radial Load Capacity (lbs) - 130
Thrust Load (lbs) - 280
Radial Stiffness (lbs/μin) - 0.91
Total Indicated Runout (millionths inch) - ± 1
Flow Rate (SCFH) - 39
Bearing Weight (lb) - 2.2
Metric :
Radial Load Capacity (N) - 578.3
Thrust Load (N) - 1245.5
Radial Stiffness (N/μm) - 159
Total Indicated Runout (μm) - 0.025

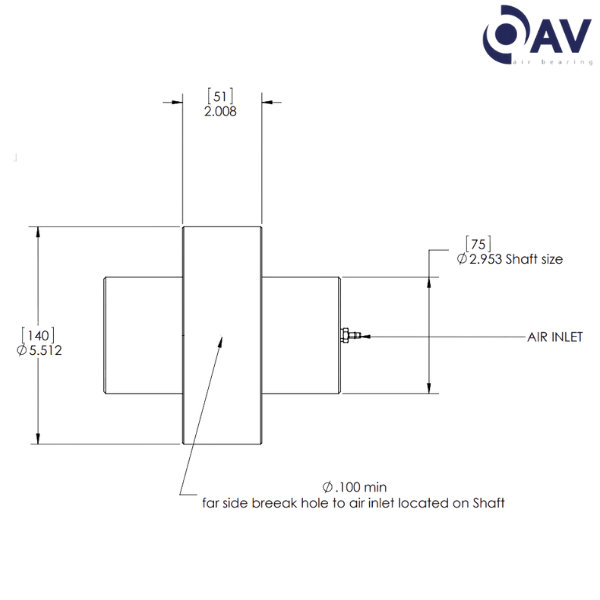

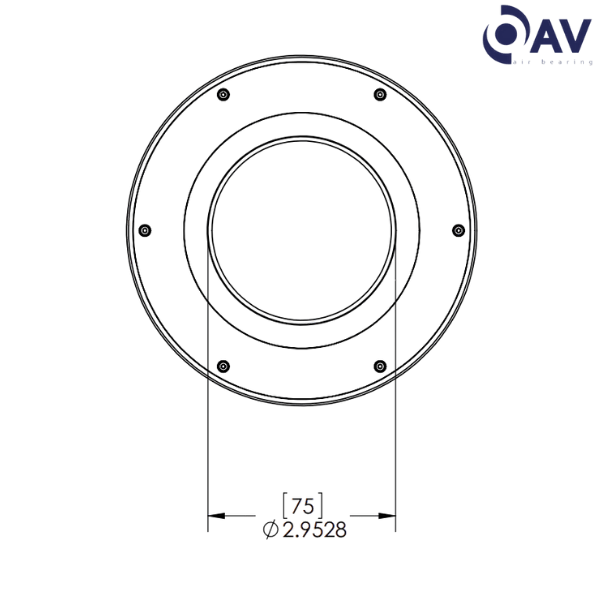

Bearing Inside Diameter (mm) - 75 (+ .01/.00)
Bearing Outside Diameter (mm) - 140 (+ .00/- .01)
Bearing Width (mm) - 51
Shaft Diameter (mm) - 75 (+ .01/.00)
Housing Bore size Light Press Fit Method (mm) - 139.98 (+ .02/-.00)
Bearing Weight (kg) - 0.998

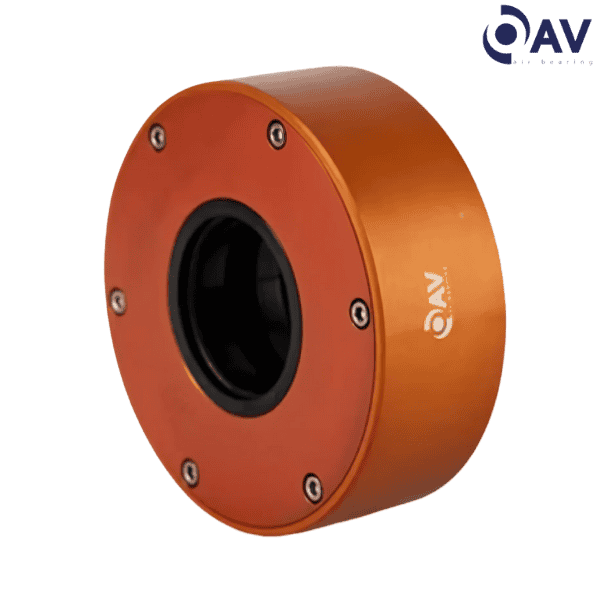

** Images are for representation purposes only
