Description
Brand - OAV
Item Number - OAVRL50M OAV

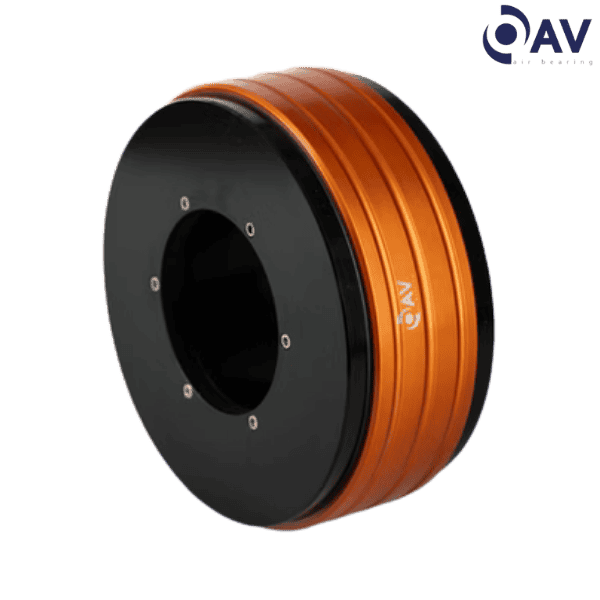

Category - Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifeline - Infinite
Imperial:
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 70.1
Maximum Axial Load (lbs) - 175
Total Indicated Runout [TIR] (millionths in) - ± 1
Axial and Radial Error Motion (μin) - 1.1
Weight (lb) - 2.7
Flow Rate (SCFH) - 39.3
Metric:
Inner Diameter (mm) - 50
Maximum Radial Load (N) - 311.8
Maximum Axial Load (N) - 778.4
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (μm) - 0.027
Bearing Inside Diameter (mm) - 50 (+0.01 to -0.00)
Bearing Outside Diameter (mm) - 110 (+0.00 to -0.01)
Bearing Width (mm) - 44.5
Weight (kg) - 1.2231
Shaft Diameter (mm) - 50

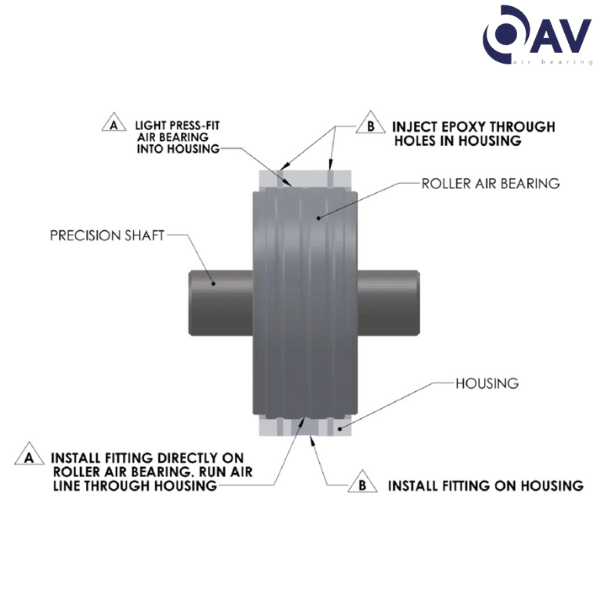

Housing Bore size Light Press Fit Method (mm) - 109.98 (+0.02 to -0.00)
** Images are for representation purposes only
