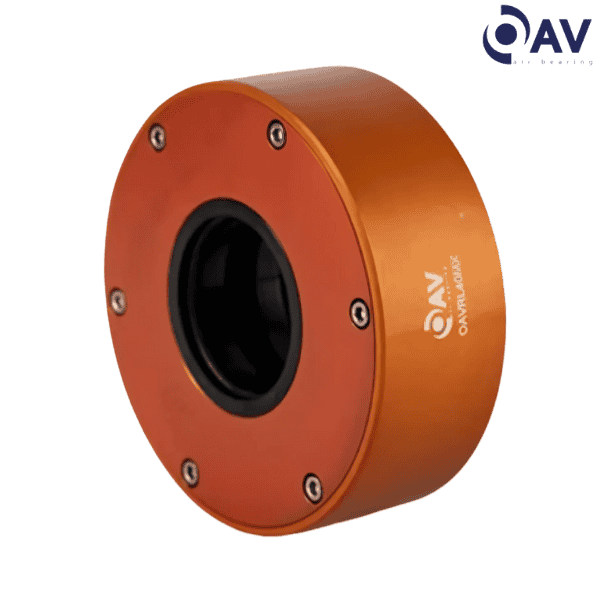

Description
Brand - OAV
Item Number - OAVRL40MX OAV
Category - X-Spin Roller Air Bearing
Housing Material/Finish - Aircraft Quality Aluminum
Porous Material - OAV Carbon Graphite
Pressure Port Threads - TBD
Imperial :
Minimum Input Pressure (psi) - 20
Maximum Input Pressure (psi) - 100
Radial Load Capacity (lbs) - 40.1
Thrust Load (lbs) - 72
Radial Stiffness (lbs/μin) - 0.41
Total Indicated Runout (millionths inch) - ± 1
Flow Rate (SCFH) - 21
Bearing Weight (lb) - 1.14
Metric :
Radial Load Capacity (N) - 178.4
Thrust Load (N) - 320.3
Radial Stiffness (N/μm) - 68
Total Indicated Runout (μm) - 0.025

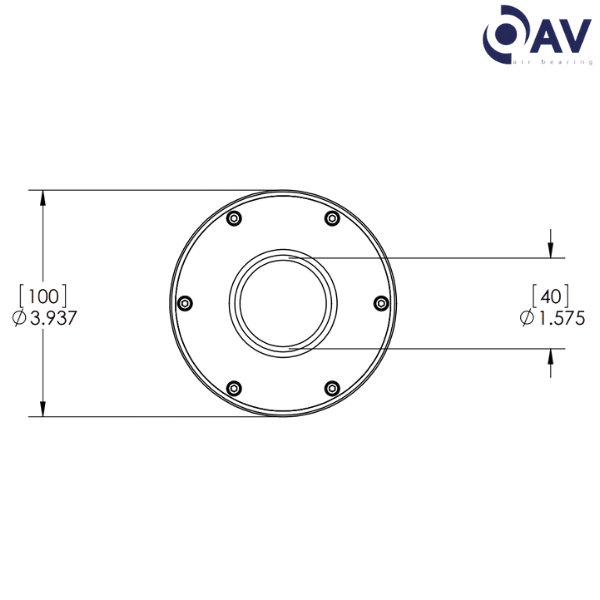

Bearing Inside Diameter (mm) - 40 (+ .01/.00)
Bearing Outside Diameter (mm) - 100 (+ .00/-.01)

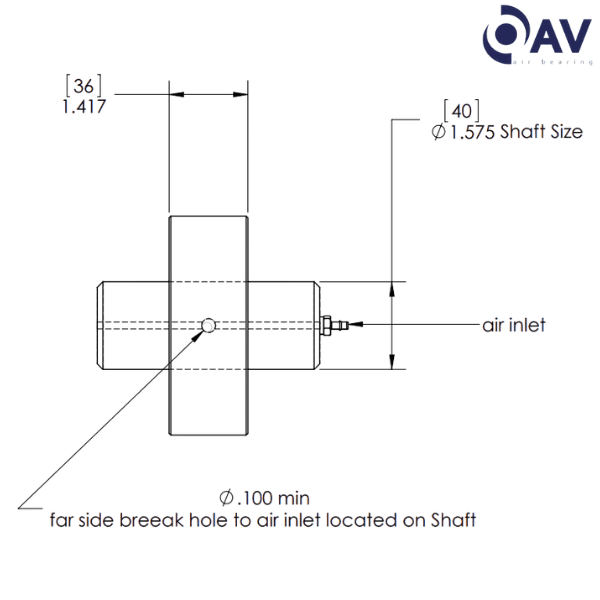

Bearing Width (mm) - 36
Shaft Diameter (mm) - 40 (+ .01/.00)
Housing Bore size Light Press Fit Method (mm) - 99.98 (+ .02/-.00)
Bearing Weight (kg) - 0.517
** Images are for representation purposes only
