Description
Brand - OAV
Item Number - OAVRL40M OAV
Category - Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifeline - Infinite
Imperial:
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 56.2
Maximum Axial Load (lbs) - 185
Total Indicated Runout [TIR] (millionths in) - ± 1
Axial and Radial Error Motion (μin) - 1.1
Weight (lb) - 1.44
Flow Rate (SCFH) - 16.1
Metric:
Inner Diameter (mm) - 40
Maximum Radial Load (N) - 250
Maximum Axial Load (N) - 822.9
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (μm) - 0.027
Bearing Inside Diameter (mm) - 40 (+0.01 to -0.00)
Bearing Outside Diameter (mm) - 100 (+0.00 to -0.01)
Bearing Width (mm) - 41.3
Weight (kg) - 0.65232
Shaft Diameter (mm) - 40

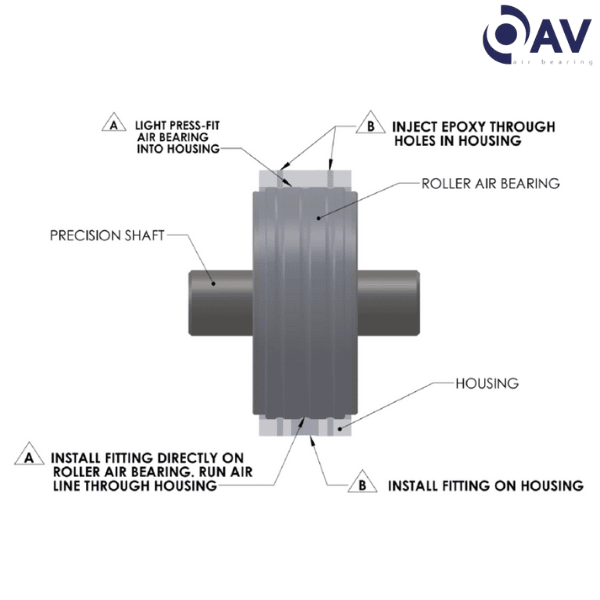

Housing Bore size Light Press Fit Method (mm) - 99.98 (+0.02 to -0.00)
** Images are for representation purposes only
