Description
Brand - OAV
Item Number - OAVRL3000 OAV
Category - Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifeline - Infinite
Imperial:
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 124.8
Maximum Axial Load (lbs) - 260
Total Indicated Runout [TIR] (millionths in) - ± 1
Axial and Radial Error Motion (μin) - 1.1
Bearing Inside Diameter (inch) - 3.0000 (+0.0005 to -0.0000)
Bearing Outside Diameter (inch) - 5.5000 (+0.0000 to -0.0005)
Bearing Width (inch) - 2
Weight (lb) - 2.9
Shaft Diameter (inch) - 3

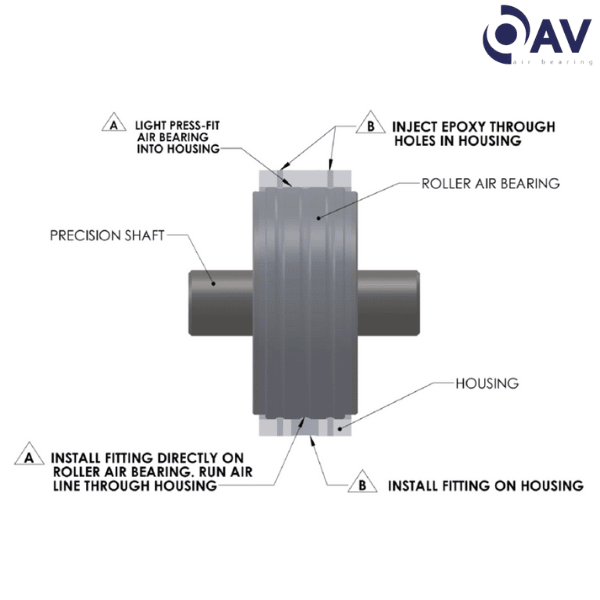

Housing Bore size Light Press Fit Method (inch) - 5.4993 (+0.0007 to -0.0000)
Flow Rate (SCFH) - 31
Metric:
Inner Diameter (mm) - 3
Maximum Radial Load (N) - 555.1
Maximum Axial Load (N) - 1156.5
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (μm) - 0.027
Weight (kg) - 1.3137
** Images are for representation purposes only
