Description
Brand - OAV
Item Number - OAVRL25M OAV
Category - Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifeline - Infinite
Imperial:
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 28.6
Maximum Axial Load (lbs) - 155
Total Indicated Runout [TIR] (millionths in) - ± 1
Axial and Radial Error Motion (μin) - 0.9
Weight (lb) - 1.1
Flow Rate (SCFH) - 15.5
Metric:
Inner Diameter (mm) - 25
Maximum Radial Load (N) - 127.2
Maximum Axial Load (N) - 689.5
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (μm) - 0.023
Bearing Inside Diameter (mm) - 25 (+0.01 to -0.00)
Bearing Outside Diameter (mm) - 90 (+0.00 to -0.01)
Bearing Width (mm) - 34.9
Weight (kg) - 0.4983
Shaft Diameter (mm) - 25

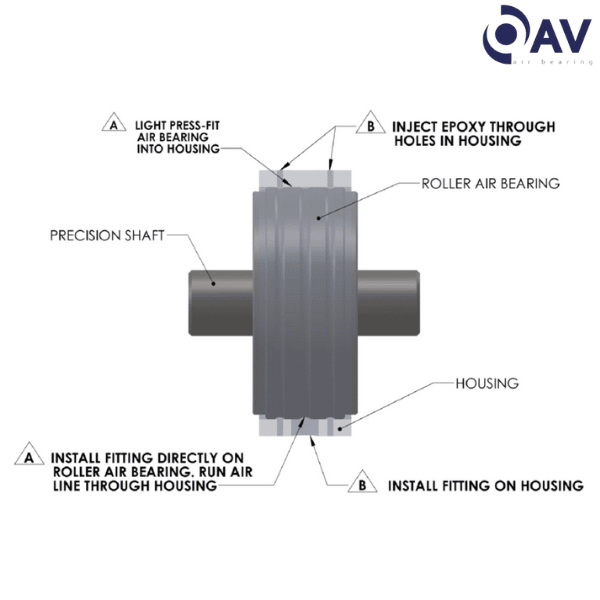

Housing Bore size Light Press Fit Method (mm) - 89.98 (+0.02 to -0.00)

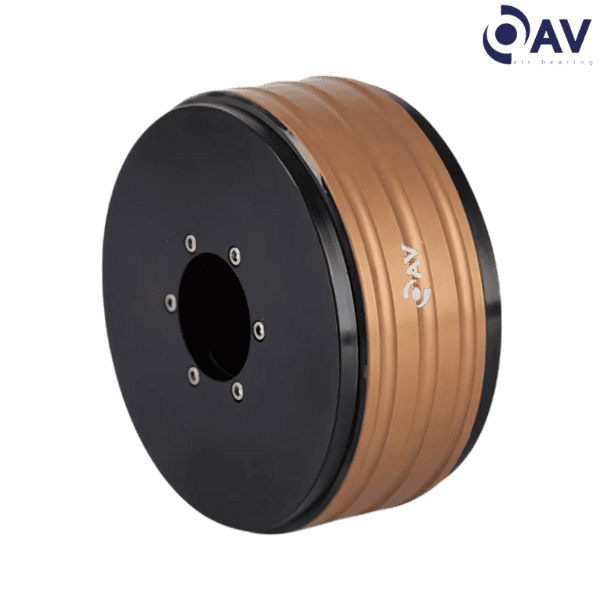

** Images are for representation purposes only
