Description
Brand - OAV
Item Number - OAVRL2000 OAV

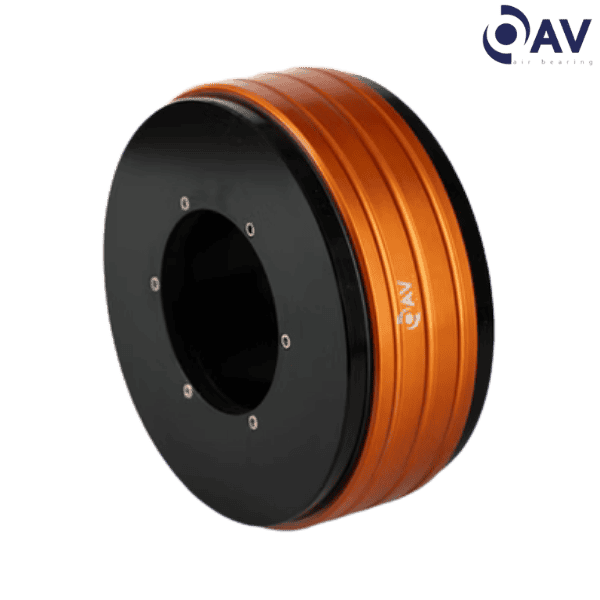

Category - Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifeline - Infinite
Imperial:
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 70.1
Maximum Axial Load (lbs) - 175
Total Indicated Runout [TIR] (millionths in) - ± 1
Axial and Radial Error Motion (μin) - 1.1

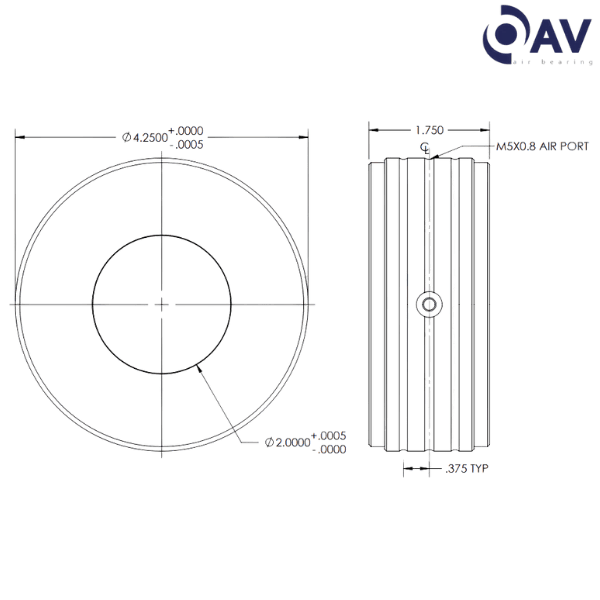

Bearing Inside Diameter (inch) - 2.0000 (+0.0005 to -0.0000)
Bearing Outside Diameter (inch) - 4.2500 (+0.0000 to -0.0005)
Bearing Width (inch) - 1.75
Weight (lb) - 1.7
Shaft Diameter (inch) - 2

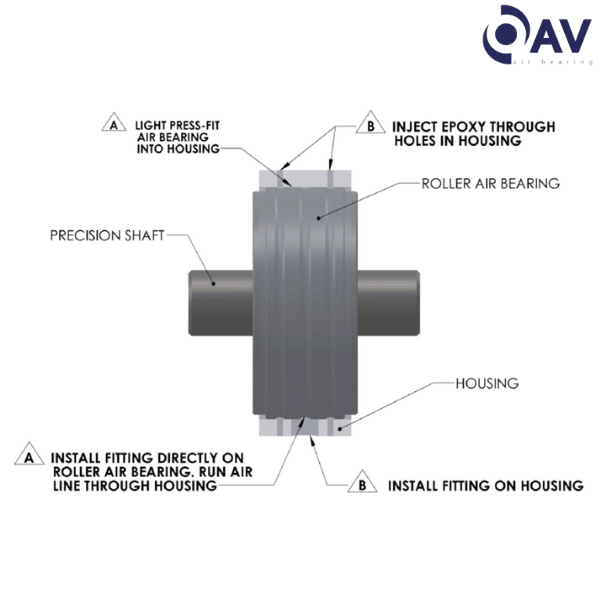

Housing Bore size Light Press Fit Method (inch) - 4.2493 (+0.0007 to -0.0000)
Flow Rate (SCFH) - 17.5
Metric:
Inner Diameter (mm) - 2
Maximum Radial Load (N) - 311.8
Maximum Axial Load (N) - 778.4
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (μm) - 0.027
Weight (kg) - 0.7701
** Images are for representation purposes only
