Description
Brand - OAV

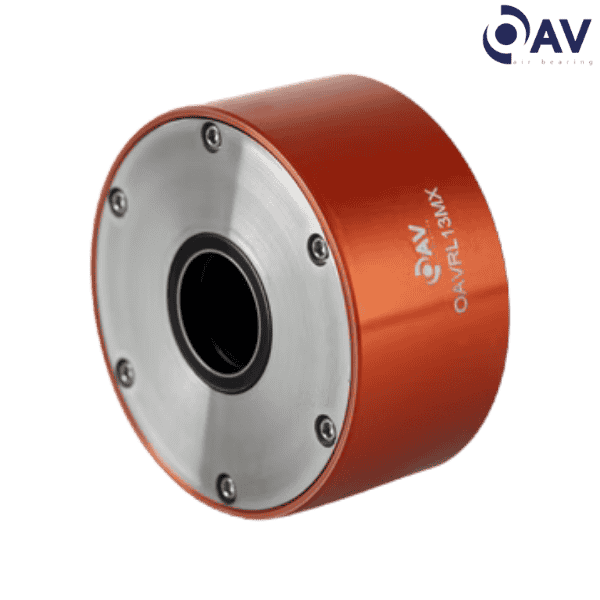

Item Number - OAVRL13MX OAV
Category - X-Spin Roller Air Bearing
Housing Material/Finish - Aircraft Quality Aluminum
Porous Material - OAV Carbon Graphite
Pressure Port Threads - TBD
Imperial :
Minimum Input Pressure (psi) - 20
Maximum Input Pressure (psi) - 100
Radial Load Capacity (lbs) - 13
Thrust Load (lbs) - 30
Radial Stiffness (lbs/μin) - 0.06
Total Indicated Runout (millionths inch) - ± 1
Flow Rate (SCFH) - 15
Bearing Weight (lb) - 0.15
Metric :
Radial Load Capacity (N) - 57.8
Thrust Load (N) - 133.5
Radial Stiffness (N/μm) - 11
Total Indicated Runout (μm) - 0.025

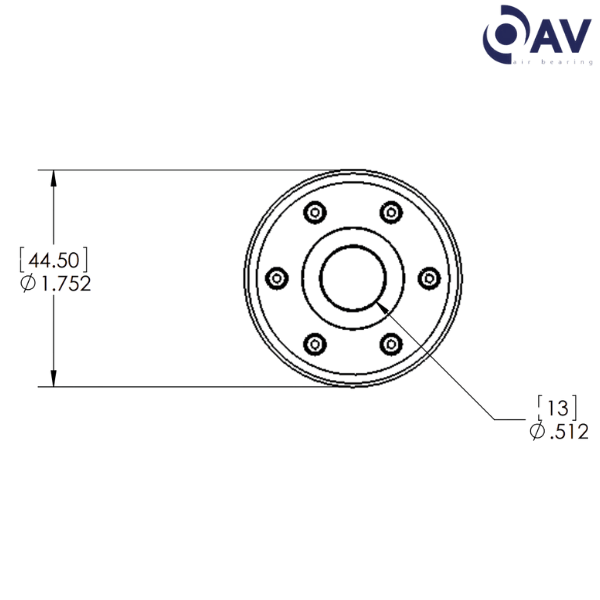

Bearing Inside Diameter (mm) - 13 (+ .01/-.00)
Bearing Outside Diameter (mm) - 44.5 (+ .00/-.01)

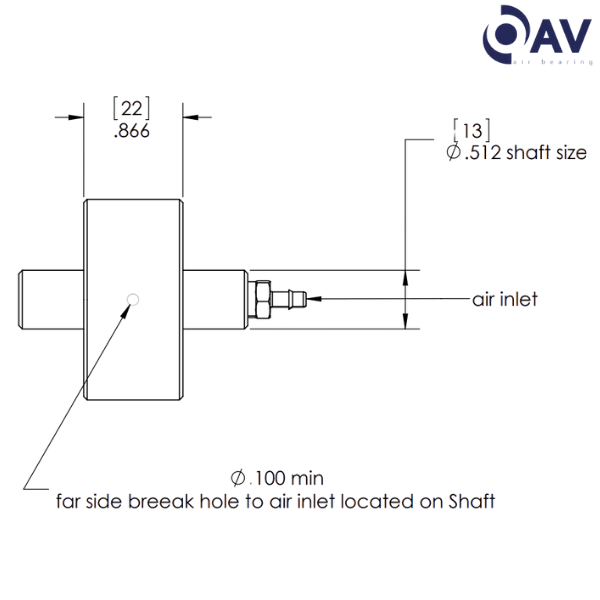

Bearing Width (mm) - 22
Shaft Diameter (mm) - 13 (+ .01/.00)
Housing Bore size Light Press Fit Method (mm) - 44.48 (+ .02/-.00)
Bearing Weight (kg) - 0.068
** Images are for representation purposes only
