Description
Brand - OAV
Item Number - OAVRL13M OAV
Category - Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifeline - Infinite
Imperial:
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 6.5
Maximum Axial Load (lbs) - 27
Total Indicated Runout [TIR] (millionths in) - ± 1
Axial and Radial Error Motion (μin) - 1.1
Flow Rate (SCFH) - 12.2
Metric:
Inner Diameter (mm) - 13
Maximum Radial Load (N) - 28.8
Maximum Axial Load (N) - 120
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (μm) - 0.027

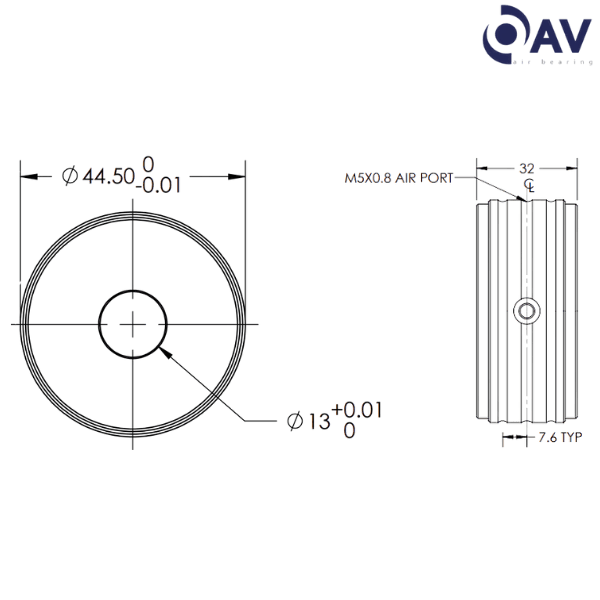

Bearing Inside Diameter (mm) - 13 (+0.01)
Bearing Outside Diameter (mm) - 44.5 (+0.00 to -0.01)
Bearing Width (mm) - 22
Weight (kg) - 0.076
Shaft Diameter (mm) - 13mm

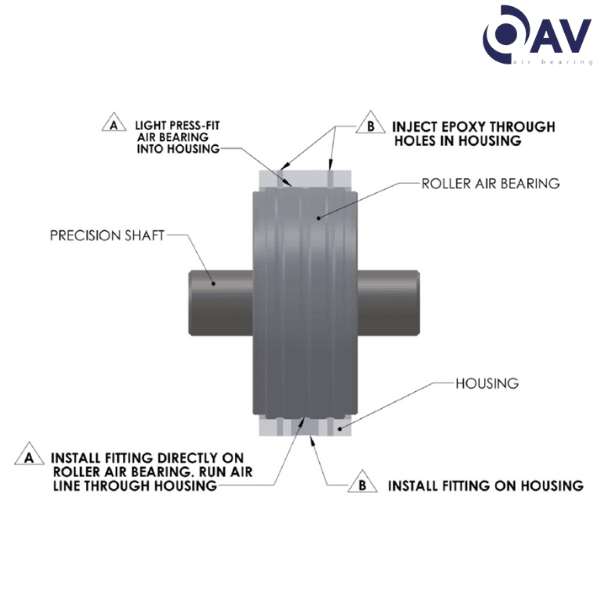

Housing Bore size Light Press Fit Method (mm) - 44.50 (+0 to -0.02)
Flow Rate (NLPM) - 5.8
** Images are for representation purposes only
