Description
Brand - OAV
Item Number - OAVRL1000 OAV
Category - Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifeline - Infinite
Imperial:
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 28.6
Maximum Axial Load (lbs) - 155
Total Indicated Runout [TIR] (millionths in) - ± 1
Axial and Radial Error Motion (μin) - 0.9
Bearing Inside Diameter (inch) - 1.0000 (+0.0005 to -0.0000)
Bearing Outside Diameter (inch) - 3.5000(+0.0000 to -0.0005)
Bearing Width (inch) - 1.375
Weight (lb) - 1.1
Shaft Diameter (inch) - 1

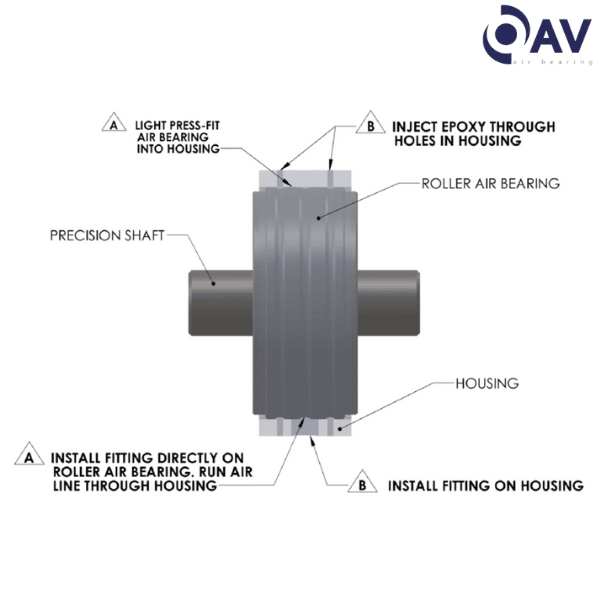

Housing Bore size Light Press Fit Method (inch) - 3.4993 (+0.0007 to -0.0000)
Flow Rate (SCFH) - 15.5
Metric:
Inner Diameter (mm) - 1
Maximum Radial Load (N) - 127.2
Maximum Axial Load (N) - 689.5
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (μm) - 0.023
Weight (kg) - 0.4983
** Images are for representation purposes only
