Description
Brand - OAV
Item Number - OAVRL0750 OAV
Category - Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifeline - Infinite
Imperial:
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 22.6
Maximum Axial Load (lbs) - 85
Total Indicated Runout [TIR] (millionths in) - ± 1
Axial and Radial Error Motion (μin) - 0.9

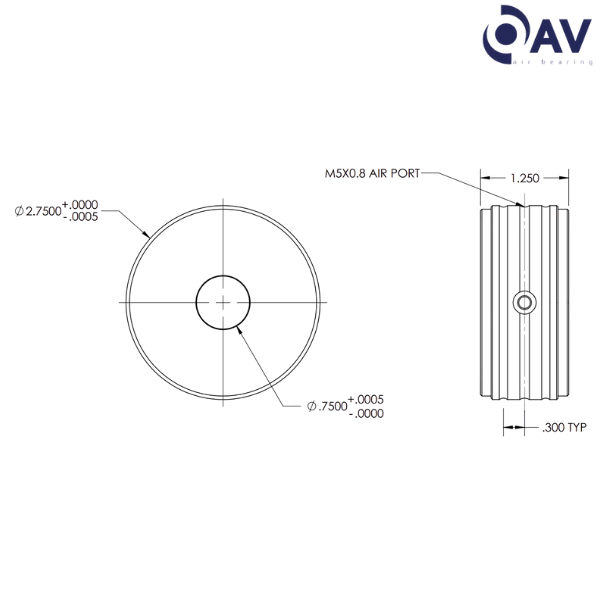

Bearing Inside Diameter (inch) - 0.7500 (+0.0005 to -0.0000)
Bearing Outside Diameter (inch) - 2.7500 (+0.0000 to -0.0005)
Bearing Width (inch) - 1.25
Weight (lb) - 0.58
Shaft Diameter (inch) - 0.75
Housing Bore size Light Press Fit Method (inch) - 2.7493 (+0.0007 to -0.0000)
Flow Rate (SCFH) - 15
Metric:
Inner Diameter (mm) - 0.75
Maximum Radial Load (N) - 100.5
Maximum Axial Load (N) - 378.1
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (μm) - 0.023
Weight (kg) - 0.26274

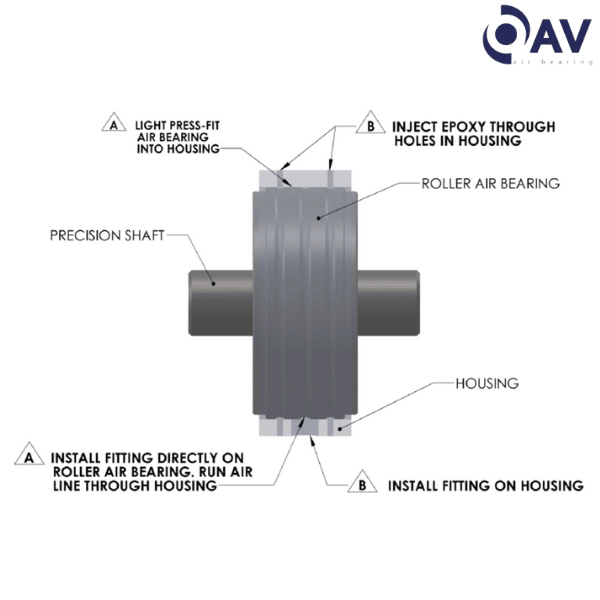

** Images are for representation purposes only
