Description
Brand - OAV
Item Number - OAVRL0500 OAV
Category - Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifeline - Infinite
Imperial:
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 6.5
Maximum Axial Load (lbs) - 27
Total Indicated Runout [TIR] (millionths in) - ± 1
Axial and Radial Error Motion (μin) - 0.9

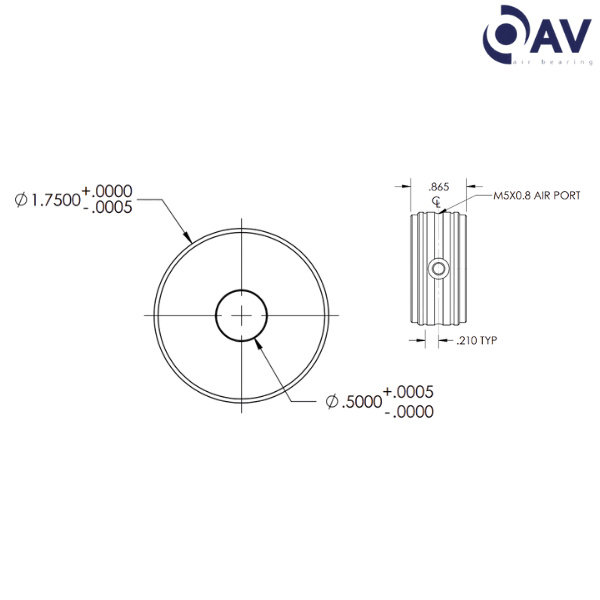

Bearing Inside Diameter (inch) - 0.500 (+0.0005 to -0.0000)
Bearing Outside Diameter (inch) - 1.7500 (+0.0000 to -0.0005)
Bearing Width (inch) - 0.865
Weight (lb) - 0.17
Shaft Diameter (inch) - 0.5
Housing Bore size Light Press Fit Method (inch) - 1.7493 (+0.0007 to -0.0000)
Flow Rate (SCFH) - 5
Metric:
Inner Diameter (mm) - 0.5
Maximum Radial Load (N) - 28.9
Maximum Axial Load (N) - 120.1
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (μm) - 0.023
Weight (kg) - 0.07701

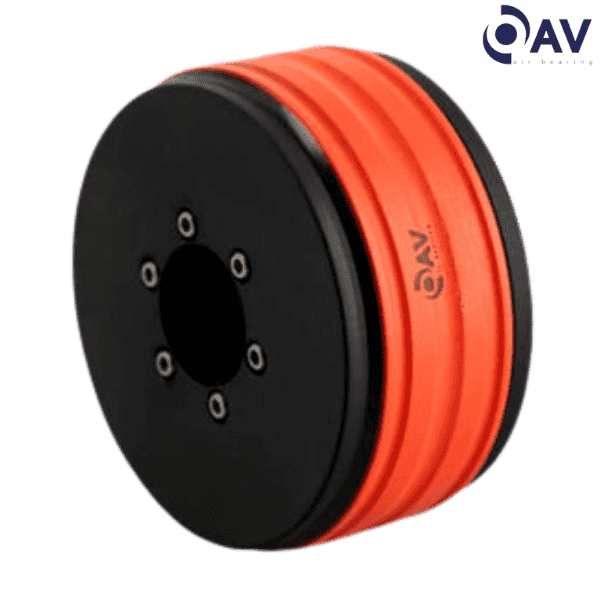

** Images are for representation purposes only
