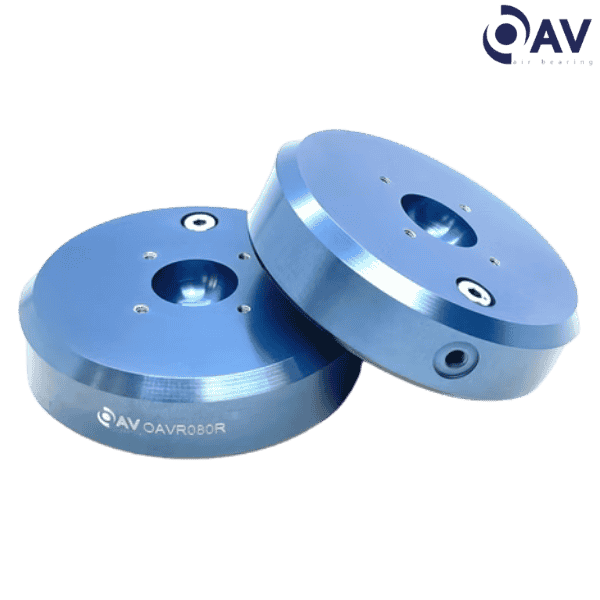

Description
Brand - OAV
Item Number - OAVR080R OAV
Category - Flat Round Air Bearing
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Porous Media Material - Carbon
Imperial :
Input Pressure (psi) - 40 to 100
Ideal Load (lbs) - 267
Stiffness (lbs/μin) - 0.67
Flow Rate (SCFH) - 4
Flatness (inch) - 0.00002
Metric :
Input Pressure (MPa) - 0.28 to 0.68

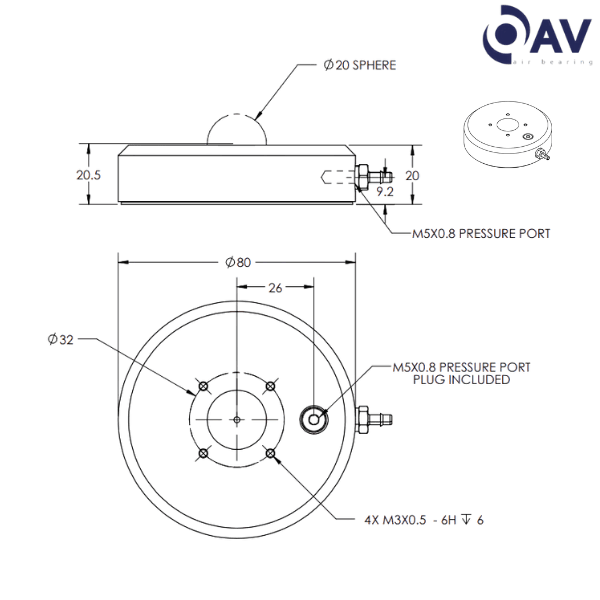

Size (mm) - 80
Ideal Load (N) - 1189
Stiffness (N/μ) - 116.94
Flow Rate (NLPM) - 1.9
Fly Height (μ) - 5
Bearing Height (mm) - 20
Bearing Weight (kg) - 0.231
Flatness (mm) - 0.0005
Pressure Port Thread - M5 x 0.8
** Images are for representation purposes only
