Description
Brand - OAV
Item Number - OAVR065R OAV
Category - Flat Round Air Bearing
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Porous Media Material - Carbon
Imperial :
Input Pressure (psi) - 40 to 100
Ideal Load (lbs) - 149
Stiffness (lbs/μin) - 0.53
Flow Rate (SCFH) - 3.2
Flatness (inch) - 0.00002
Metric :
Input Pressure (MPa) - 0.28 to 0.68
Size (mm) - 65
Ideal Load (N) - 664
Stiffness (N/μ) - 91.98
Flow Rate (NLPM) - 1.5
Fly Height (μ) - 5
Bearing Height (mm) - 20
Bearing Weight (kg) - 0.149
Flatness (mm) - 0.0005
Pressure Port Thread - M5 x 0.8

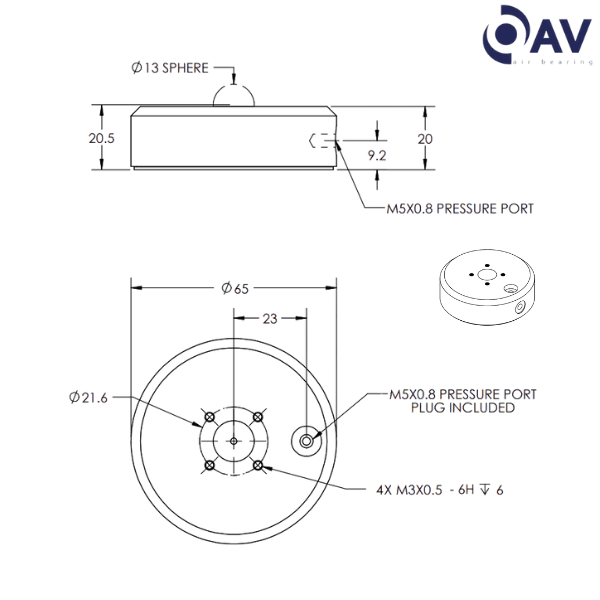

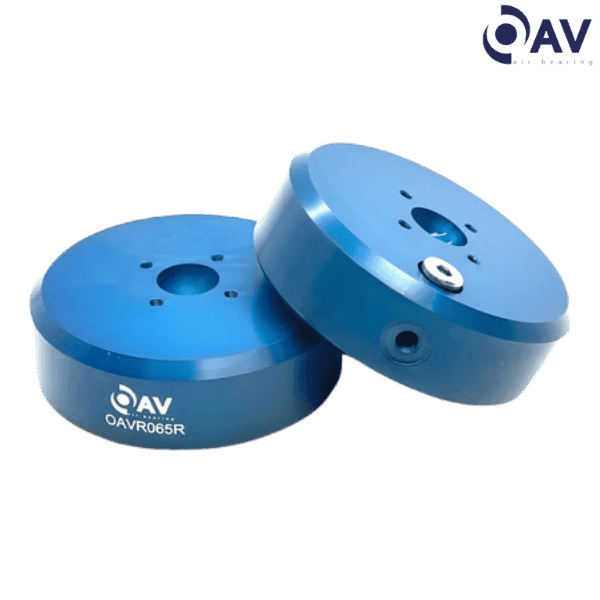

** Images are for representation purposes only
