Description
Brand - OAV
Item Number - OAVR040R OAV
Category - Flat Round Air Bearing
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Porous Media Material - Carbon
Imperial :
Input Pressure (psi) - 40 to 100
Ideal Load (lbs) - 57
Stiffness (lbs/μin) - 0.17
Flow Rate (SCFH) - 2
Flatness (inch) - 0.00002
Metric :
Input Pressure (MPa) - 0.28 to 0.68
Size (mm) - 40
Ideal Load (N) - 254
Stiffness (N/μ) - 29.43
Flow Rate (NLPM) - 0.93
Fly Height (μ) - 5
Bearing Height (mm) - 13
Bearing Weight (kg) - 0.034
Flatness (mm) - 0.0005
Pressure Port Thread - M5 x 0.8

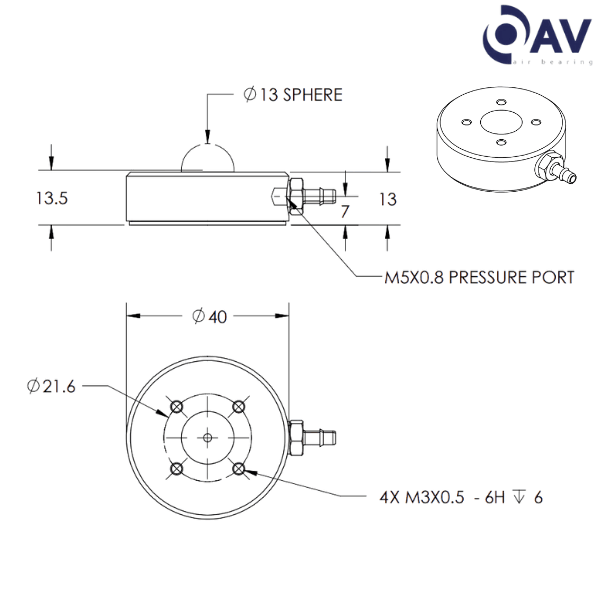

** Images are for representation purposes only
