Description
Brand - OAV
Item Number - OAVMOD40L80V OAV

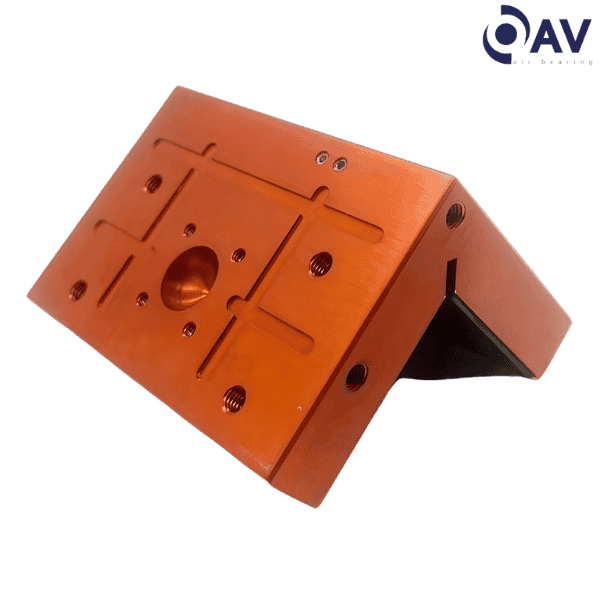

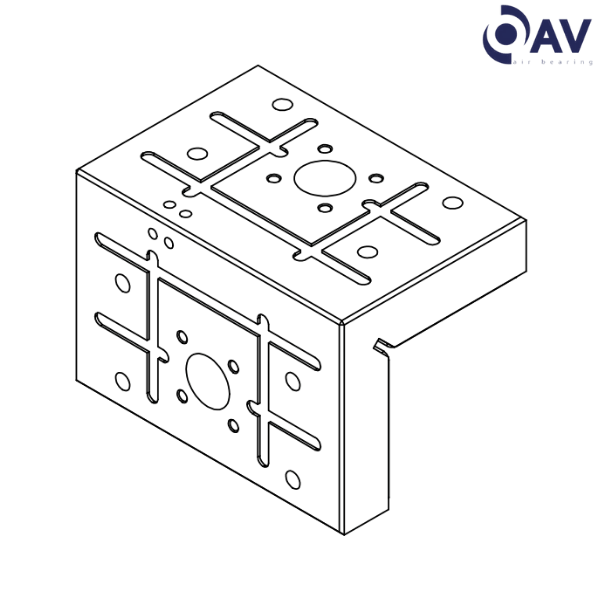

Category - Vacuum Preloaded Modular Corner Air Bearing
Housing Material/Finish - Aluminum/Anodized
Porous Media Material - Carbon
Imperial :
Input Pressure (psi) - 40 to 100
Ideal Load (lbs) - 119
Stiffness (lbs/μin) - 0.27
Hold Down Force @50.8 kPa (lbs/μ in) - 15
Flatness (inch) - 0.00002
Flow (SCFH) - 3.16
Metric :
Input Pressure (MPa) - 0.27 to 0.68
Ideal Load (N) - 530
Stiffness (N/μ) - 48
Hold Down Force @50.8 kPa (N) - 66.75
Flow (NLPM) - 1.5
Fly Height (μ) - 5
Bearing Size (mm) - 40 x 80
Bearing Height (mm) - 15
Bearing Weight (kg) - 0.259
Flatness (mm) - 0.0005

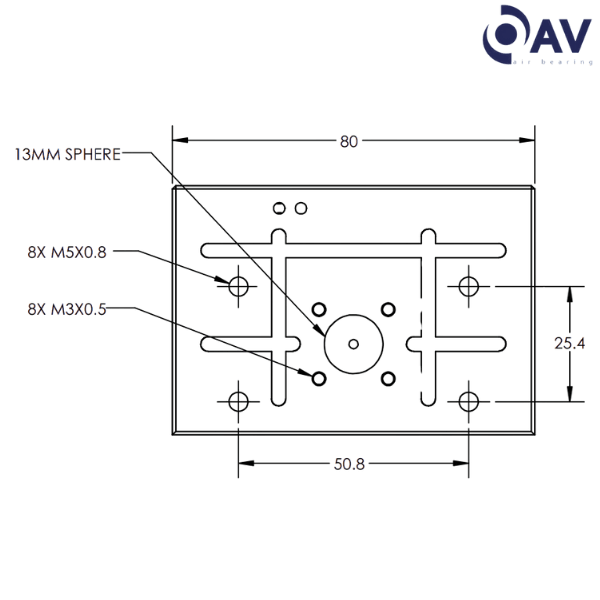

Port Thread - M5 x 0.8
** Images are for representation purposes only
