Description
Brand - OAV
Item Number - OAVF40L80V OAV
Category - Vacuum Pre-loaded Air Bearings
Housing Material/Finish - Aluminum/Anodized
Porous Media Material - Carbon
Imperial :
Input Pressure (psi) - 40 to 100
Input Vacuum (in Hg) - 15
Ideal Load (lbs) - 104
Stiffness (lbs/μ in) - 0.22
Flatness (inch) - 0.00002
Hold Down Force @ 50.8kPa (lbs) - 15
Flow (SCFH) - 2.8
Metric :
Input Pressure (MPa) - 0.27 to 0.68
Size (mm) - 40x80
Input Vacuum (kPa) - 50.8
Ideal Load (N) - 463
Stiffness (N/micron) - 38.4
Hold Down Force @ 50.8kPa (N) - 66.75
Fly Height (micron) - 5
Bearing Height (mm) - 15
Bearing Weight (kg) - 0.104
Flatness (mm) - 0.0005
Port Thread - M5 x 0.8

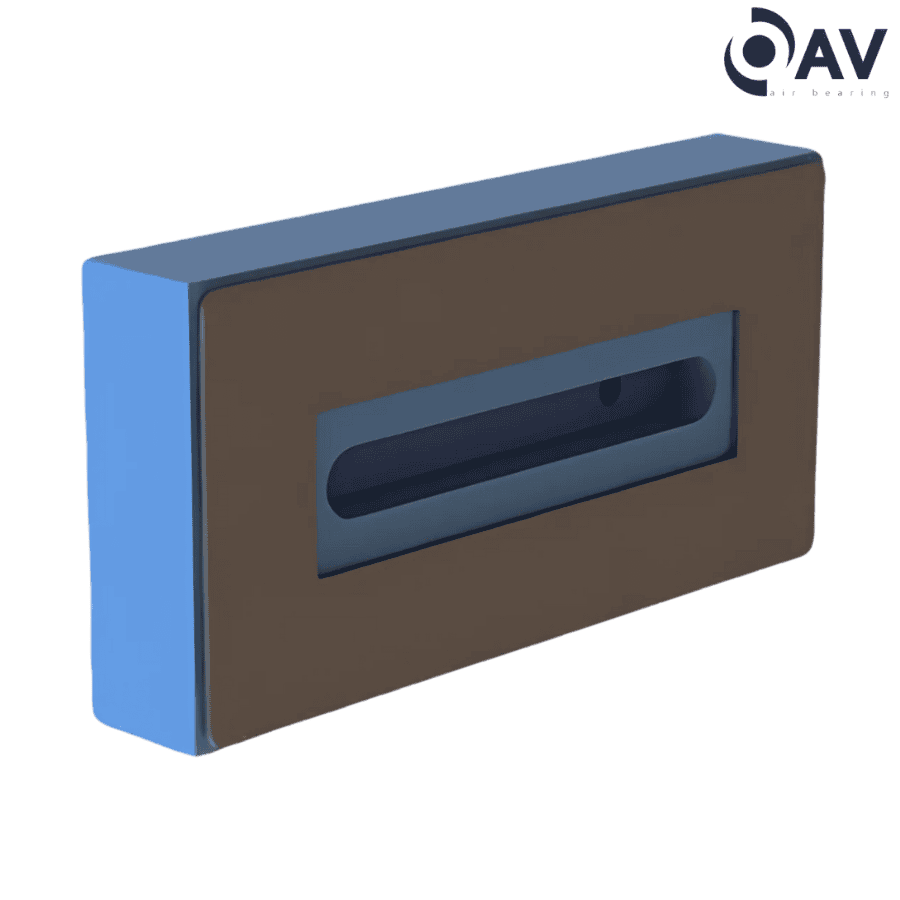

** Images are for representation purposes only
