Description
Brand - OAV
Item Number - OAVF40L80 OAV

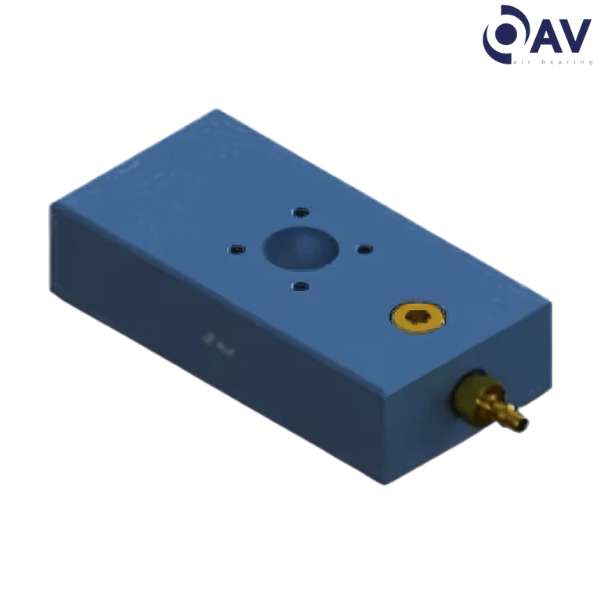

Category - Flat Rectangular Air Bearing
Housing Material/Finish - 7075 Aircraft Quality Aluminum/ Mil Spec Hard Anodize
Porous Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Ideal Load (lbs) - 143
Stiffness (lbs/μin) - 0.36
Flatness (inch) - 0.00002
Flow (SCFH) - 3.8
Metric :
Size (mm) - 40 x 80
Ideal Load (N) - 637
Pressure Port Threads - M5 x 0.8
Stiffness (N/μ) - 62.63
Flow (NLPM) - 1.8
Fly Height (μ) - 5
Bearing Height (mm) - 20
Bearing Weight (kg) - 0.143
Flatness (mm) - 0.0005
** Images are for representation purposes only
