Description
Brand - OAV
Item Number - OAVF40L50 OAV
Category - Flat Rectangular Air Bearing
Housing Material/Finish - 7075 Aircraft Quality Aluminum/ Mil Spec Hard Anodize
Porous Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Ideal Load (lbs) - 90
Stiffness (lbs/μin) - 0.23
Flatness (inch) - 0.00002
Flow (SCFH) - 2.9
Metric :
Size (mm) - 40 x 50
Ideal Load (N) - 401
Pressure Port Threads - M5 x 0.8
Stiffness (N/μ) - 39.42
Flow (NLPM) - 1.3
Fly Height (μ) - 5
Bearing Height (mm) - 13
Bearing Weight (kg) - 0.055
Flatness (mm) - 0.0005

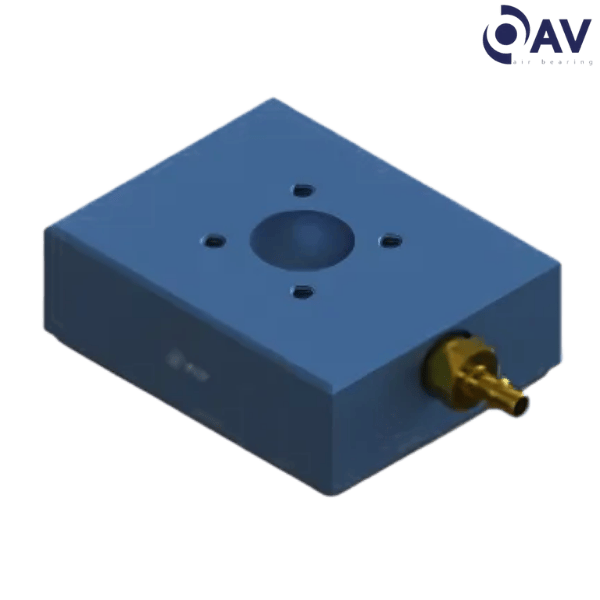

** Images are for representation purposes only
