Description
Brand - OAV
Item Number - OAVF25L50 OAV
Category - Flat Rectangular Air Bearing
Housing Material/Finish - 7075 Aircraft Quality Aluminum/ Mil Spec Hard Anodize
Porous Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Ideal Load (lbs) - 56
Stiffness (lbs/μin) - 0.14
Flatness (inch) - 0.00002
Flow (SCFH) - 2.4
Metric :

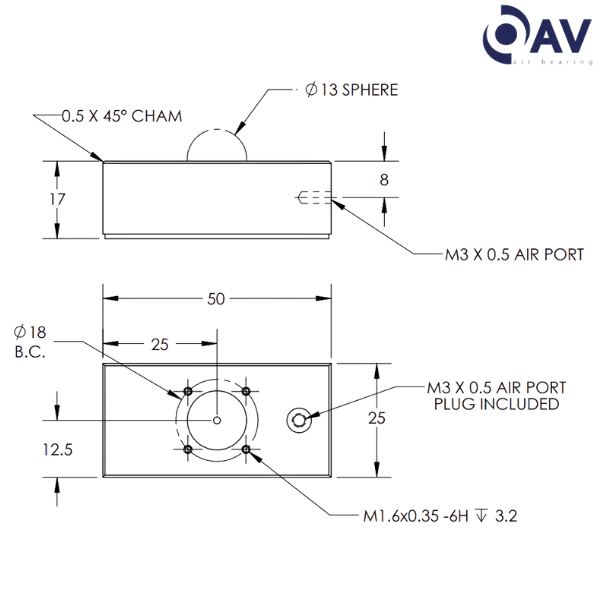

Size (mm) - 25 x 50
Ideal Load (N) - 250
Pressure Port Threads - M3 x 0.5
Stiffness (N/μ) - 24.53
Flow (NLPM) - 1.1
Fly Height (μ) - 5
Bearing Height (mm) - 17
Bearing Weight (kg) - 0.047
Flatness (mm) - 0.0005

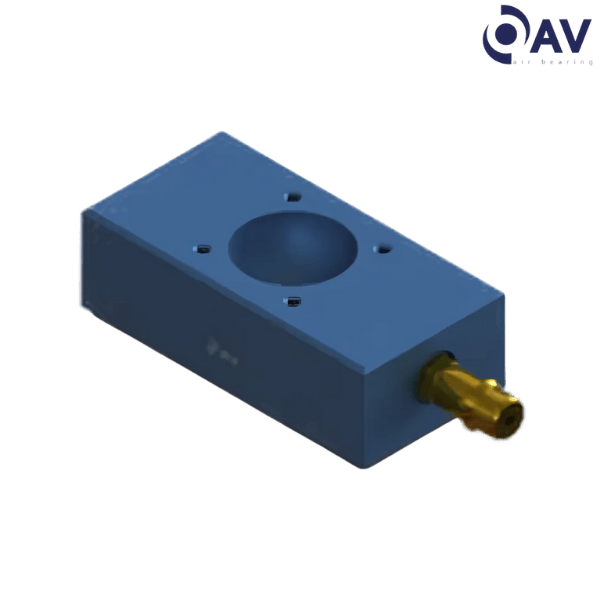

** Images are for representation purposes only
