Description
Brand - OAV
Item Number - OAVF20L40V OAV
Category - Vacuum Pre-loaded Air Bearings
Housing Material/Finish - Aluminum/Anodized
Porous Media Material - Carbon
Imperial :
Input Pressure (psi) - 40 to 100
Input Vacuum (in Hg) - 15
Ideal Load (lbs) - 26
Stiffness (lbs/μ in) - 0.058
Flatness (inch) - 0.00002
Hold Down Force @ 50.8kPa (lbs) - 3.8
Flow (SCFH) - 1.44
Metric :
Input Pressure (MPa) - 0.27 to 0.68
Size (mm) - 20x40
Input Vacuum (kPa) - 50.8
Ideal Load (N) - 116
Stiffness (N/micron) - 10
Hold Down Force @ 50.8kPa (N) - 17
Fly Height (micron) - 5
Bearing Height (mm) - 13
Bearing Weight (kg) - 0.0225
Flatness (mm) - 0.0005
Pressure Port Thread - M3x0.5

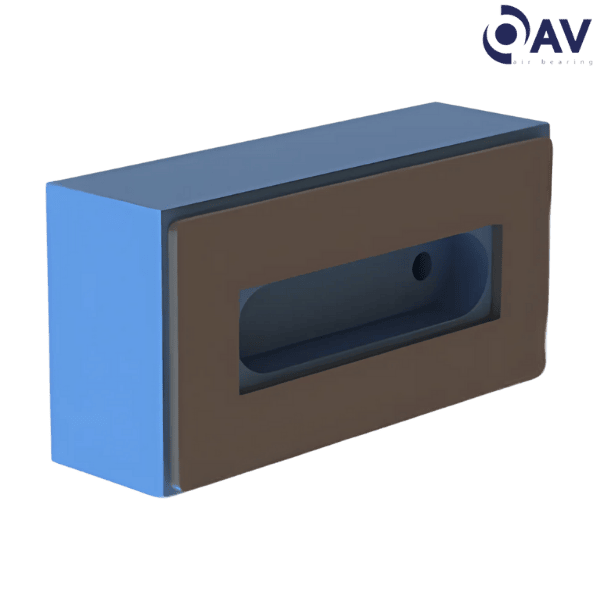

** Images are for representation purposes only
