Description
Brand - OAV
Item Number - OAVF20L40 OAV
Category - Flat Rectangular Air Bearing
Housing Material/Finish - 7075 Aircraft Quality Aluminum/ Mil Spec Hard Anodize
Porous Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Ideal Load (lbs) - 36
Stiffness (lbs/μin) - 0.09
Flatness (inch) - 0.00002
Flow (SCFH) - 2
Metric :
Size (mm) - 20 x 40
Ideal Load (N) - 161
Pressure Port Threads - M3 x 0.5
Stiffness (N/μ) - 15.77
Flow (NLPM) - 0.9
Fly Height (μ) - 5
Bearing Height (mm) - 13
Bearing Weight (kg) - 0.025
Flatness (mm) - 0.0005

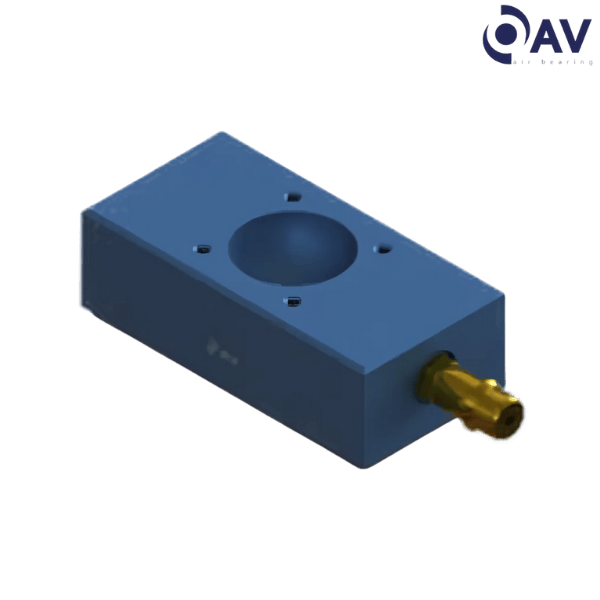

** Images are for representation purposes only
