Description
Brand - OAV
Item Number - OAVF100L1000 OAV
Category - Air Bearing Bars
Housing Material/Finish - 7075 Aircraft Quality Aluminum/ Mil Spec Hard Anodize
Porous Media Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Ideal Load (lbs) - 4651
Stiffness (lbs/μin) - 11.63
Flow (SCFH) - 44.6
Flatness (inch) - 0.00002
Metric :
Ideal Load (N) - 20697
Pressure Port Threads - M5 x 0.8
Stiffness (N/μm) - 2037.1
Fly Height (μ) - 5
Size (mm) - 100 x 1000

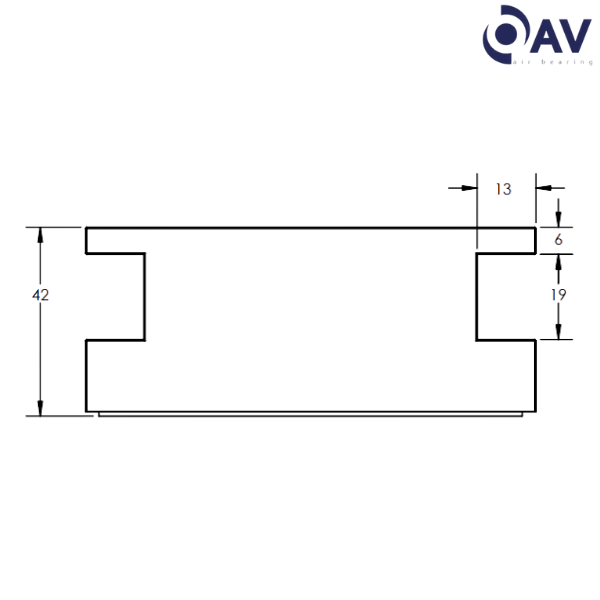

Bearing Height (mm) - 42
Flatness (mm) - 0.0005
Bearing Weight (kg) - 11.164

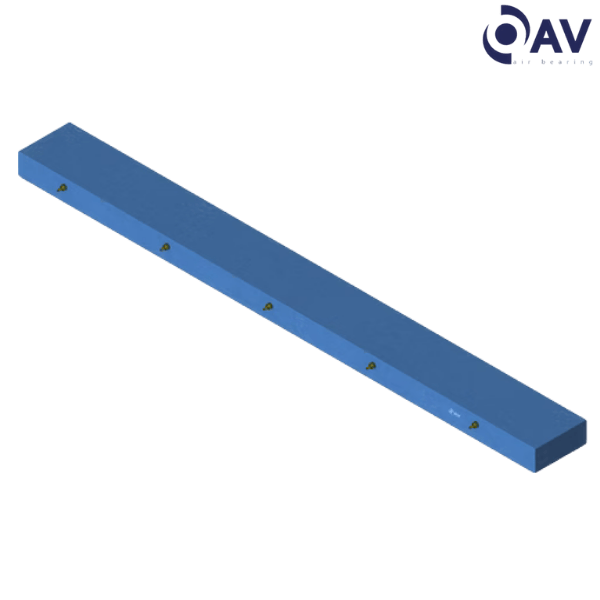

** Images are for representation purposes only
