Description
Brand - OAV
Item Number - OAVCB6060 OAV
Category - Air Bearing Bars
Housing Material/Finish - A6N01SS-T5 Aluminum Alloy / Blue Anodize
Porous Media Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 20
Maximum Input Pressure (psi) - 40
Fly Height (inch) - 0.0032
Fly Height Range (inch) - 0.0008 - 0.0047
Flow Rate (SCFM) - 0.63
Vacuum Flow (SCFM) - 0.43
Flatness (inch) - 0.001
Bearing Weight (lbs) - 4.7
Metric :
Minimum Input Pressure (kPa) - 137
Maximum Input Pressure (kPa) - 275.7
Fly Height (microns) - 80
Fly Height Range (μm) - 20 - 120
Stiffness (N/μm) - 0.04
Height Stability (μm) - ±5
Flow (NLPM) - 21

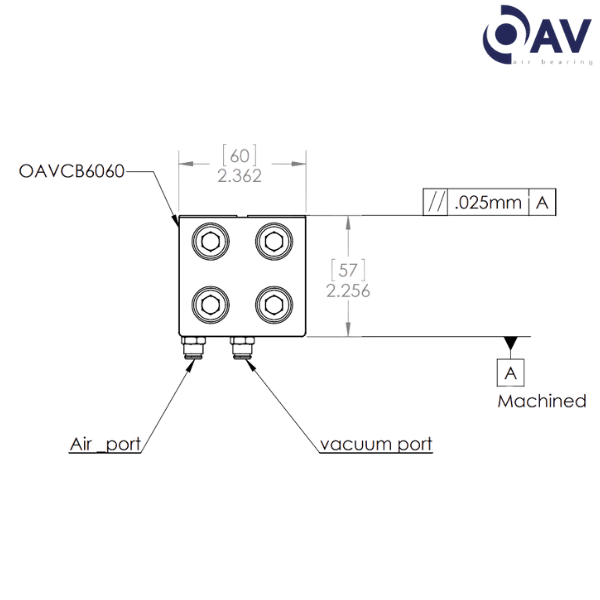

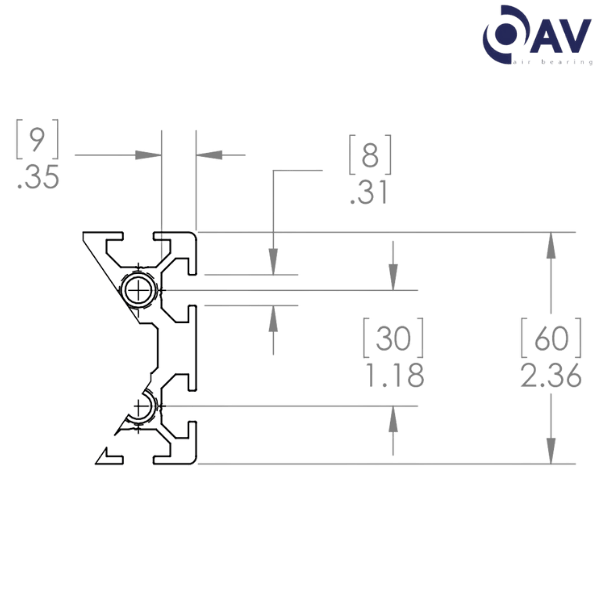

Bearing Width (mm) - 60
Bearing Height (mm) - 57
Bearing Length (mm) - 1250
Flatness (mm) - 0.025
Size (mm) - 1250
Bearing Weight (kg) - 2.13
** Images are for representation purposes only
