Description
Brand - OAV
Item Number - OAVBB70150 OAV
Category - Epoxy Bonded Air Bearing
Housing Material/Finish - Aluminum/Anodized
Porous Media Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Ideal Load (lbs) - 639.8
Stiffness (lbs/μin) - 0.56
Flatness (inch) - 0.00002
Metric :
Size (mm) - 15 x 72 x 150
Ideal Load (N) - 2846
Stiffness (N/μ) - 97
Flow (NLPM) - 1.4
Fly Height (μ) - 5 μ
Bearing Weight (kg) - 0.32
Flatness (mm) - 0.0005
Pressure Port Threads - M5 x 0.8

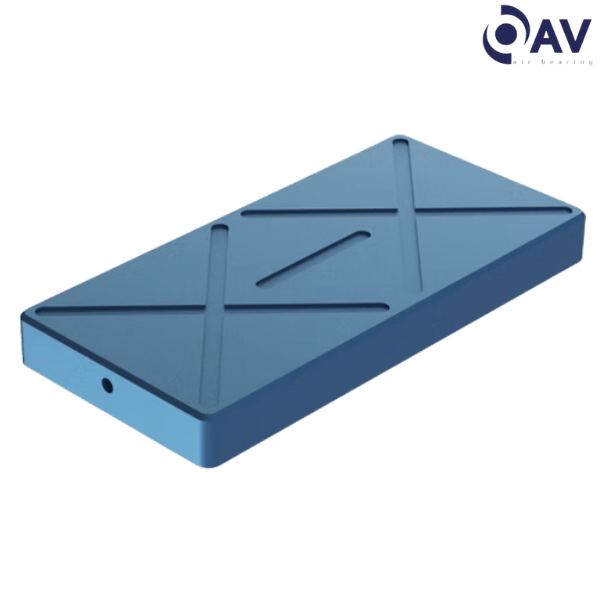

** Images are for representation purposes only
