Description
Brand - OAV
Item Number - OAVBB38118 OAV
Category - Epoxy Bonded Air Bearing
Housing Material/Finish - Aluminum/Anodized
Porous Media Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Ideal Load (lbs) - 210
Flow (SCFH) - 7
Flatness (inch) - 0.00002
Metric :

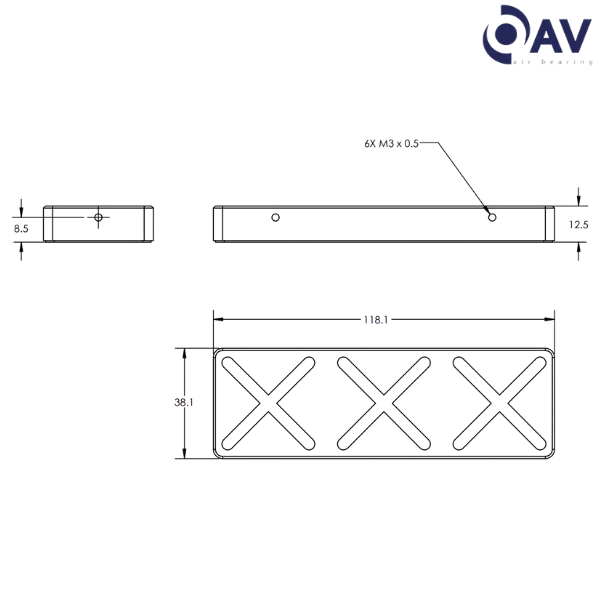

Size (mm) - 38 x 118
Ideal Load (N) - 934
Fly Height (μ) - 5
Bearing Height (mm) - 12.5
Bearing Weight (kg) - 0.129
Flatness (mm) - 0.0005
Pressure Port Threads - M5 x 0.8

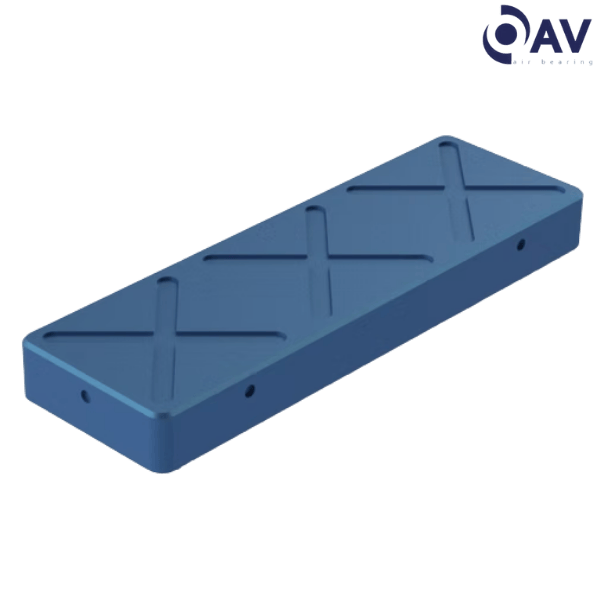

** Images are for representation purposes only
