Description
Brand - OAV
Item Number - OAVBB24100 OAV
Category - Epoxy Bonded Air Bearing
Housing Material/Finish - Aluminum/Anodized
Porous Media Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Ideal Load (lbs) - 89
Flow (SCFH) - 2.3
Flatness (inch) - 0.00002
Metric :
Size (mm) - 24 x 100
Ideal Load (N) - 398
Fly Height (μ) - 5
Bearing Height (mm) - 10
Bearing Weight (kg) - 0.056
Flatness (mm) - 0.0005
Pressure Port Threads - M3 x 0.5

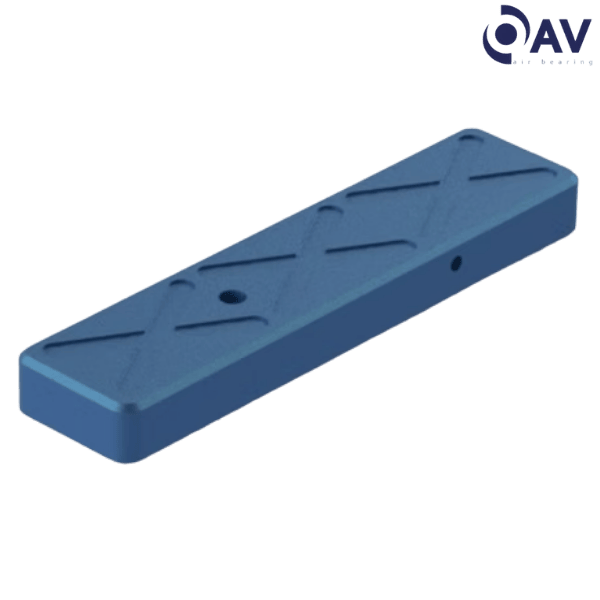

** Images are for representation purposes only
