Description
Brand - OAV
Item Number - OAVBB2398 OAV

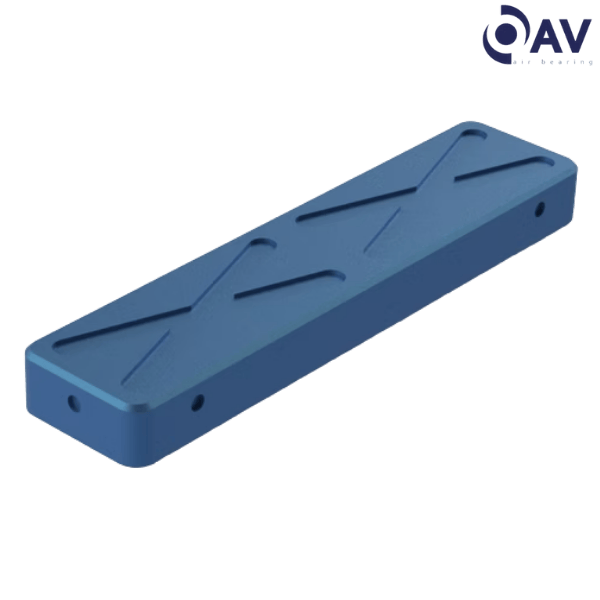

Category - Epoxy Bonded Air Bearing
Housing Material/Finish - Aluminum/Anodized
Porous Media Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Ideal Load (lbs) - 84
Flow (SCFH) - 2.2
Flatness (inch) - 0.00002
Metric :
Size (mm) - 23 x 98
Ideal Load (N) - 374
Fly Height (μ) - 5
Bearing Height (mm) - 10
Bearing Weight (kg) - 0.051
Flatness (mm) - 0.0005
Pressure Port Threads - M3 x 0.5
** Images are for representation purposes only
