Description
Brand - OAV
Item Number - OAV90DG50 OAV

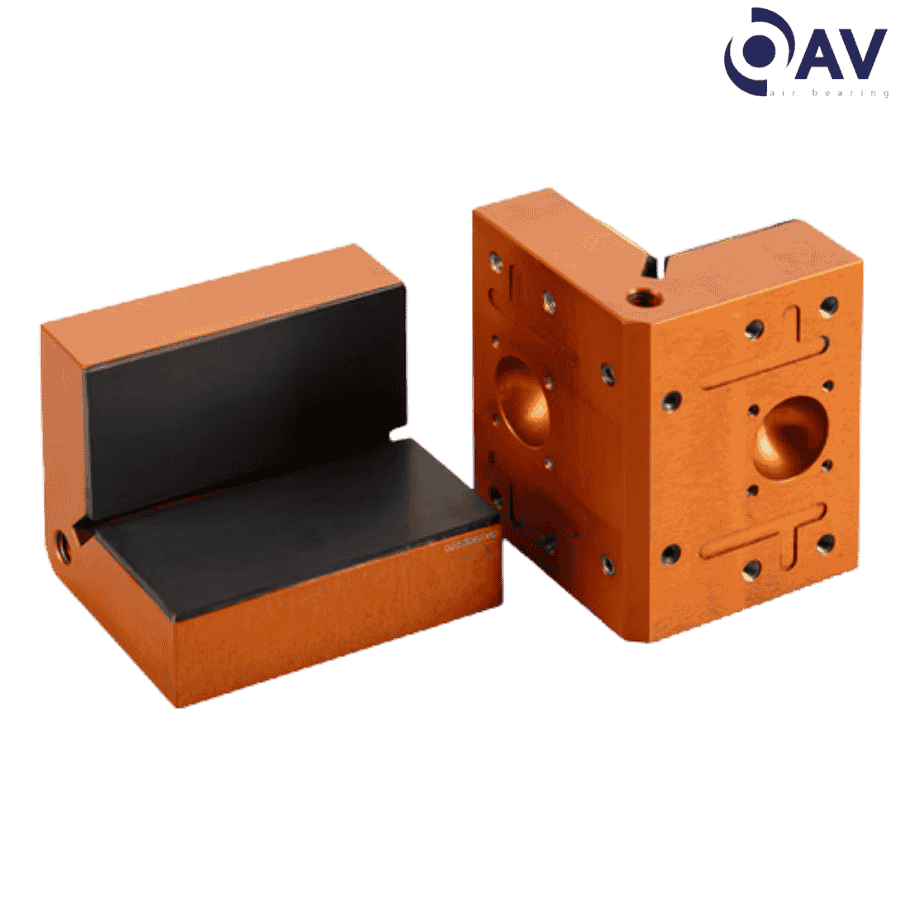

Category - Modular Corner Air Bearing
Housing Material/Finish - Aluminum Hard Anodized
Porous Media Material - Carbon
Imperial :
Input Pressure (psi) - 40 to 100
Ideal Load (lbs) - 35
Ideal Load (Y) lbs - 35
Stiffness (lbs/μin) - 0.08
Flatness (inch) - 0.00002
Flow (SCFH) - 3.4
Metric :
Input Pressure (MPa) - 0.27 to 0.68
Ideal Load (N) - 160
Ideal Load (Y) N - 160
Stiffness (N/μ) - 14
Flow (NLPM) - 1.6
Fly Height (μ) - 4

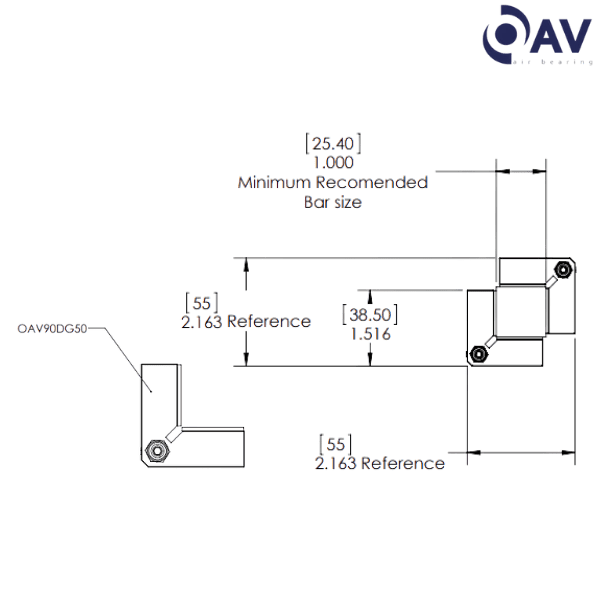

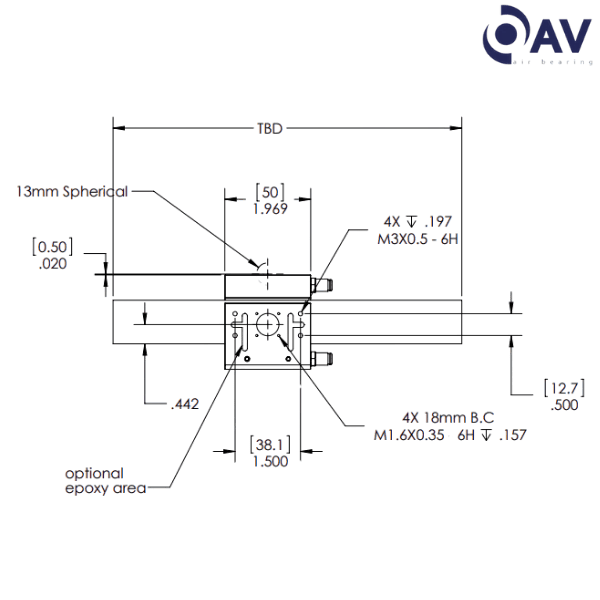

Bearing Size (mm) - 38 x 50
Bearing Height (mm) - 38
Bearing Weight (kg) - 0.091
Flatness (mm) - 0.0005
Pressure Port Thread - M5 x 0.8
** Images are for representation purposes only
