Description
Brand - OAV
Item Number - OAV3000IB OAV
Category - Air Bushing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifetime - Infinite
Imperial :
Inner Diameter (inch) - 3
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 298
Radial Stiffness (lbs/μin) - 0.91
Maximum Pitch Moment (lbs-in) - 63
Bushing Inside Diameter (inch) - 3.0007 (+0.0002 to -0.0000)
Bushing Outside Diameter (inch) - 3.917 (+0.005 to -0.000)
Bushing Length (inch) - 3.5
Recommended Shaft Outside Diameter (inch) - 3.0000 (+0.0000 to -0.0007) (g6)
Housing Bore Size O- Ring Method (inch) - 3.953 (+0.000 to -0.005)
Housing Bore Size Light Press Fit Method (inch) - 3.918 (+0.000 to -0.0015)
Metric :
Maximum Radial Load (N) - 1325.6
Radial Stiffness (N/μm) - 159
Maximum Pitch Moment (N-m) - 7.1
Bushing Weight (kg) - 0.6202
Flow Rate (SCFH) - 35.92

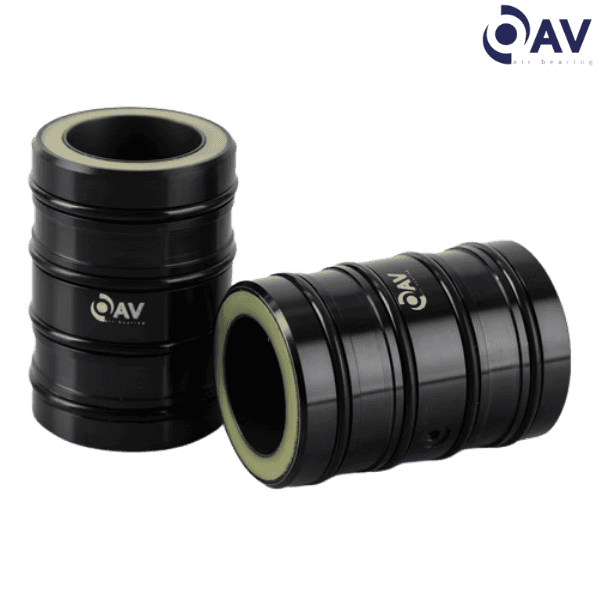

** Images are for representation purposes only
