Description
Brand - OAV
Item Number - OAV2000IB OAV
Category - Air Bushing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifetime - Infinite
Imperial :
Inner Diameter (inch) - 2
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 198
Radial Stiffness (lbs/μin) - 0.63
Maximum Pitch Moment (lbs-in) - 46
Bushing Inside Diameter (inch) - 2.0007 (+0.0002 to -0.0000)
Bushing Outside Diameter (inch) - 2.918 (+0.005 to -0.000)
Bushing Length (inch) - 3.5
Recommended Shaft Outside Diameter (inch) - 2.0000 (+0.0000 to -0.0007) (g6)
Housing Bore Size O- Ring Method (inch) - 2.933 (+0.000 to -0.005)
Housing Bore Size Light Press Fit Method (inch) - 2.920 (+0.000 to -0.0013)
Metric :
Maximum Radial Load (N) - 880.8
Radial Stiffness (N/μm) - 110
Maximum Pitch Moment (N-m) - 5.2
Bushing Weight (kg) - 0.4464
Flow Rate (SCFH) - 23.94

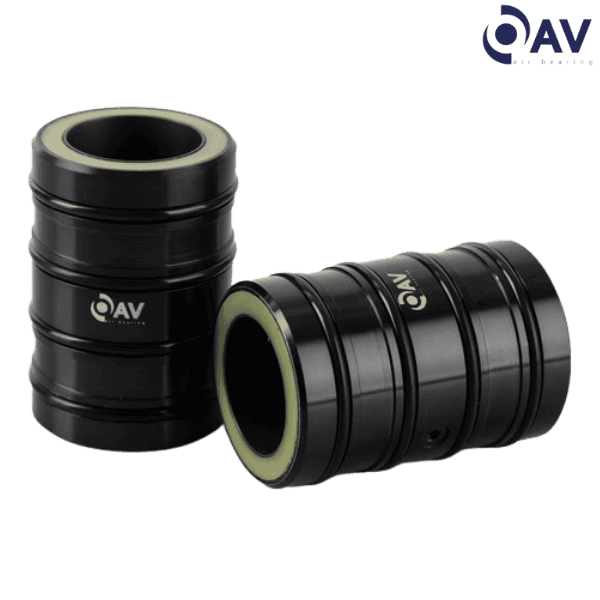

** Images are for representation purposes only
