Description
Brand - OAV
Item Number - OAV1500IB OAV
Category - Air Bushing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifetime - Infinite
Imperial :
Inner Diameter (inch) - 1.5
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 126.2
Radial Stiffness (lbs/μin) - 0.41
Maximum Pitch Moment (lbs-in) - 28

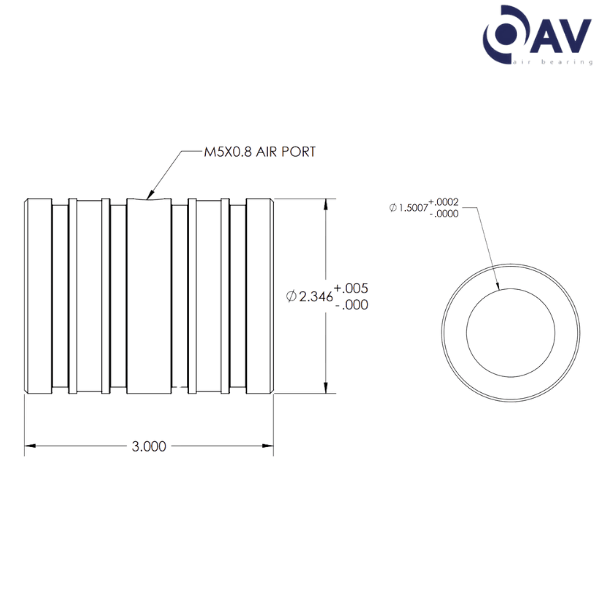

Bushing Inside Diameter (inch) - 1.5007 (+0.0002 to -0.0000)
Bushing Outside Diameter (inch) - 2.346 (+0.005 to -0.000)
Bushing Length (inch) - 3
Recommended Shaft Outside Diameter (inch) - 1.5000 (+0.0000 to -0.0007) (g6)
Housing Bore Size O- Ring Method (inch) - 2.361 (+0.000 to -0.005)
Housing Bore Size Light Press Fit Method (inch) - 2.347 (+0.000 to -0.001)
Metric :
Maximum Radial Load (N) - 561.4
Radial Stiffness (N/μm) - 72
Maximum Pitch Moment (N-m) - 3.1
Bushing Weight (kg) - 0.266
Flow Rate (SCFH) - 17.96
** Images are for representation purposes only
