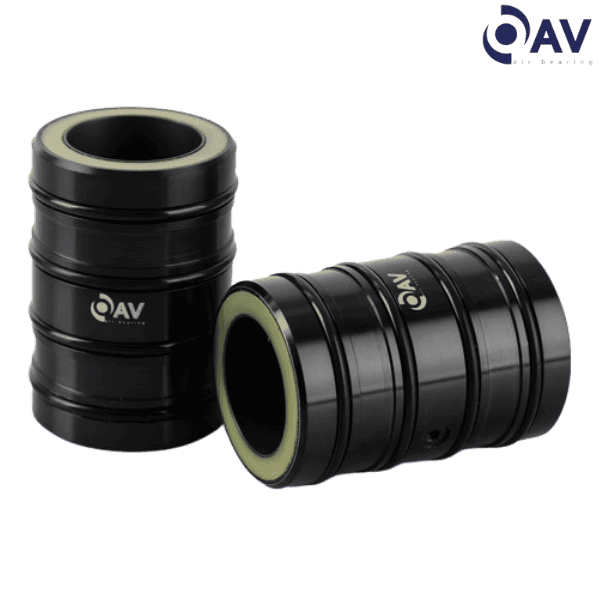

Description
Brand - OAV
Item Number - OAV1000IB OAV
Category - Air Bushing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M3 x 0.5
Lifetime - Infinite
Imperial :
Inner Diameter (inch) - 1
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 51.6
Radial Stiffness (lbs/μin) - 0.19
Maximum Pitch Moment (lbs-in) - 17

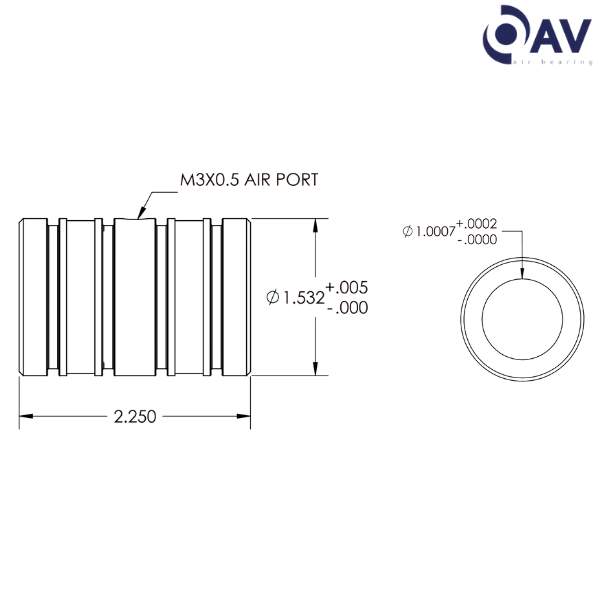

Bushing Inside Diameter (inch) - 1.0007 (+0.0002 to -0.0000)
Bushing Outside Diameter (inch) - 1.532 (+0.005 to -0.000)
Bushing Length (inch) - 2.25
Recommended Shaft Outside Diameter (inch) - 1.0000 (+0.0000 to -0.0007) (g6)

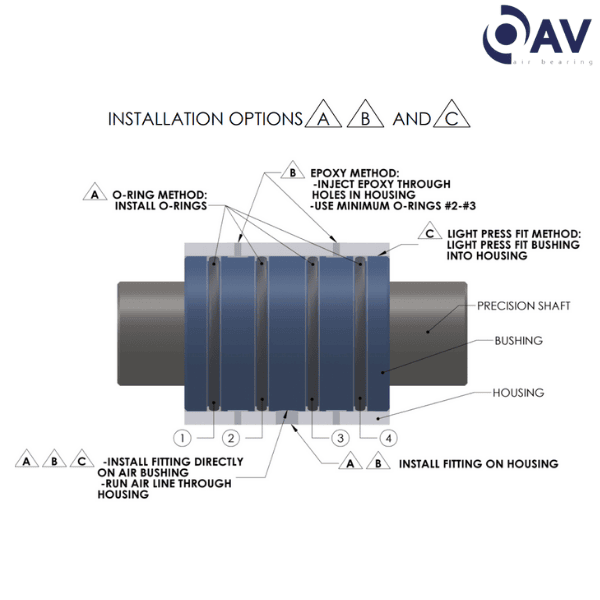

Housing Bore Size O- Ring Method (inch) - 1.547 (+0.000 to -0.005)
Housing Bore Size Light Press Fit Method (inch) - 1.533 (+0.000 to -0.001)
Metric :
Maximum Radial Load (N) - 229.5
Radial Stiffness (N/μm) - 34
Maximum Pitch Moment (N-m) - 1.9
Bushing Weight (kg) - 0.0795
Flow Rate (SCFH) - 11.97
