Description
Brand - OAV
Item Number - OAV090MB OAV
Category - Air Bushing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifetime - Infinite
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 449.6
Metric :
Inner Diameter (mm) - 90
Minimum Input Pressure (Mpa) - 0.28
Maximum Input Pressure (Mpa) - 0.68
Maximum Radial Load (N) - 2000
Radial Stiffness (N/μm) - 245
Maximum Pitch Moment (N-m) - 8.9
Bushing Inside Diameter (mm) - 90.018 (+ 0.005 to -0.000)
Bushing Outside Diameter (mm) - 113.25
Bushing Length (mm) - 110
Bushing Weight (kg) - 0.9079
Recommended Shaft Outside Diameter (mm) - 90.00 (0.00 to -0.02) (g6)
Flow Rate (SCFH) - 52.5
Housing Bore Size O- Ring Method (mm) - 113.9 (+0.127 to -0.000)
Housing Bore Size Light Press Fit Method (mm) - 113.28 (+0.000 to -0.035)

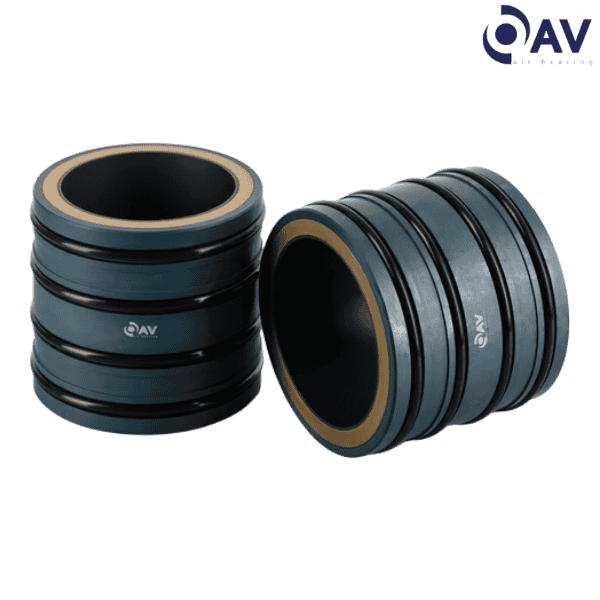

** Images are for representation purposes only
