Description
Brand - OAV
Item Number - OAV050MB OAV
Category - Air Bushing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifetime - Infinite
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 194.8
Radial Stiffness (lbs/μin) - 0.63
Maximum Pitch Moment (lbs-in) - 46
Metric :
Inner Diameter (mm) - 50
Minimum Input Pressure (Mpa) - 0.28
Maximum Input Pressure (Mpa) - 0.68
Maximum Radial Load (N) - 866.3
Radial Stiffness (N/μm) - 110
Maximum Pitch Moment (N-m) - 5.2

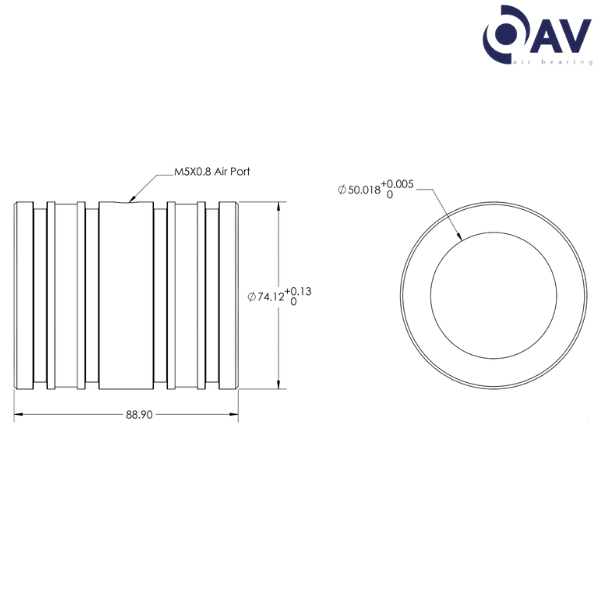

Bushing Inside Diameter (mm) - 50.018 (+ 0.005 to -0.000)
Bushing Outside Diameter (mm) - 74.12 (+0.13 to -0.00)
Bushing Length (mm) - 88.9
Bushing Weight (kg) - 0.443
Recommended Shaft Outside Diameter (mm) - 50.00 (0.00 to -0.02) (g6)
Flow Rate (SCFH) - 23.57
Housing Bore Size O- Ring Method (mm) - 74.50 (+0.127 to -0.000)
Housing Bore Size Light Press Fit Method (mm) - 74.150 (+0.000 to -0.035)

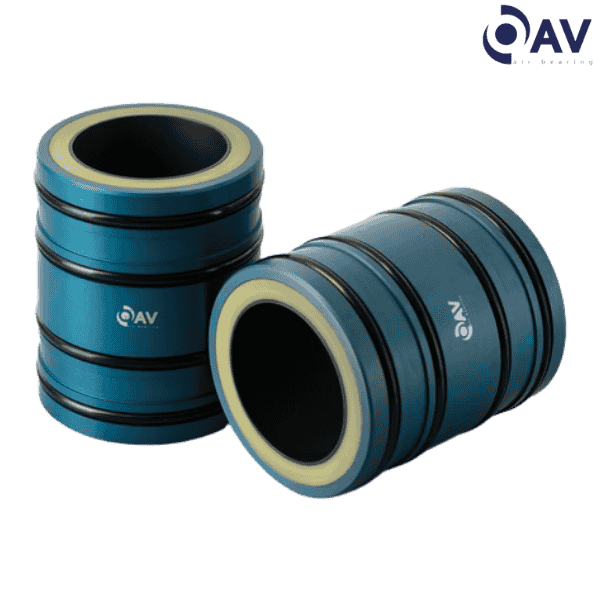

** Images are for representation purposes only
