Description
Brand - OAV
Item Number - OAV025MB OAV
Category - Air Bushing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M3 x 0.5
Lifetime - Infinite
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 50.9
Radial Stiffness (lbs/μin) - 0.19
Maximum Pitch Moment (lbs-in) - 17
Metric :
Inner Diameter (mm) - 25
Minimum Input Pressure (Mpa) - 0.28
Maximum Input Pressure (Mpa) - 0.68
Maximum Radial Load (N) - 226.3
Radial Stiffness (N/μm) - 34
Maximum Pitch Moment (N-m) - 1.9

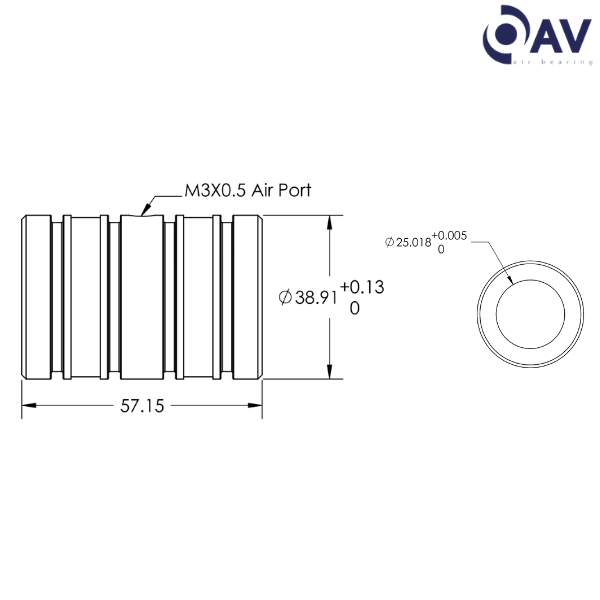

Bushing Inside Diameter (mm) - 25.018 (+ 0.005 to -0.000)
Bushing Outside Diameter (mm) - 38.91 (+0.13 to -0.00)
Bushing Length (mm) - 57.15
Bushing Weight (kg) - 0.072
Recommended Shaft Outside Diameter (mm) - 25.00 (0.00 to -0.02) (g6)
Flow Rate (SCFH) - 11.78
Housing Bore Size O- Ring Method (mm) - 39.290 (+0.127 to -0.000)
Housing Bore Size Light Press Fit Method (mm) - 38.935 (+0.000 to -0.025)
** Images are for representation purposes only
