Description
Brand - OAV
Item Number - OAV010MB OAV
Category - Air Bushing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - M3 x 0.5
Lifetime - Infinite
Imperial :
Maximum Radial Load (lbs) - 4.6
Radial Stiffness (lbs/μin) - 0.04
Maximum Pitch Moment (lbs-in) - 2.75
Metric :
Inner Diameter (mm) - 10
Minimum Input Pressure (Mpa) - 0.28
Maximum Input Pressure (Mpa) - 0.68
Maximum Radial Load (N) - 20.6
Radial Stiffness (N/μm) - 7
Maximum Pitch Moment (N-m) - 0.29

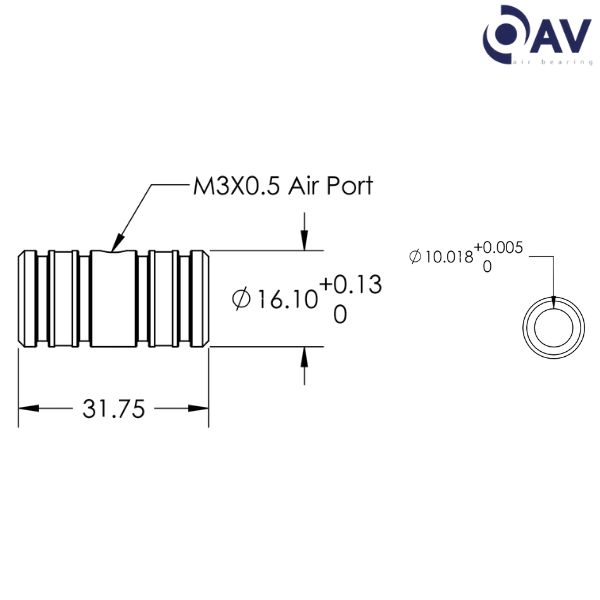

Bushing Inside Diameter (mm) - 10.018 (+ 0.005 to -0.000)
Bushing Outside Diameter (mm) - 16.10 (+0.13 to -0.00)
Bushing Length (mm) - 31.75
Bushing Weight (kg) - 0.0086
Recommended Shaft Outside Diameter (mm) - 10.00 (0.00 to -0.02) (g6)
Flow Rate (SCFH) - 4.7
Housing Bore Size O- Ring Method (mm) - 16.79 (+0.127 to -0.000)
Housing Bore Size Light Press Fit Method (mm) - 16.125 (+0.000 to -0.025)

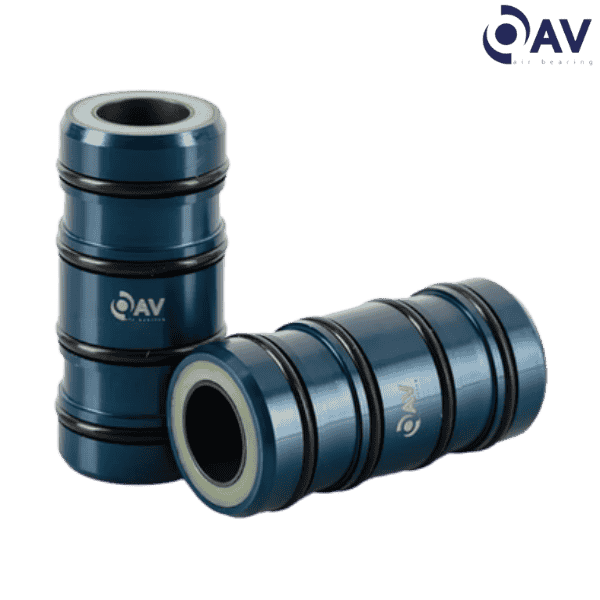

** Images are for representation purposes only
