Description
Brand - OAV
Item Number - OAV-TPR75MX OAV
Category - Tapered Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - Through Shaft Cross-Hole
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Stiffness (lb/μ in) - 0.96
Maximum Pitch Moment (lbs-in) - 59.3
Maximum Radial Load (lbs) - 324
Maximum Axial Load (lbs) - 194.4
Total Indicated Runout [TIR] (millinths in) - ± 1
Axial and Radial Error Motion (μin) - 0.9
Weight (lb) - 2.02
Metric :
Inner Diameter (mm) - 75
Radial Stiffness (N/μ m) - 168
Maximum Pitch Moment (N-m) - 6.7
Maximum Radial Load (N) - 1441.8
Maximum Axial Load (N) - 865.1
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (µm) - 0.023

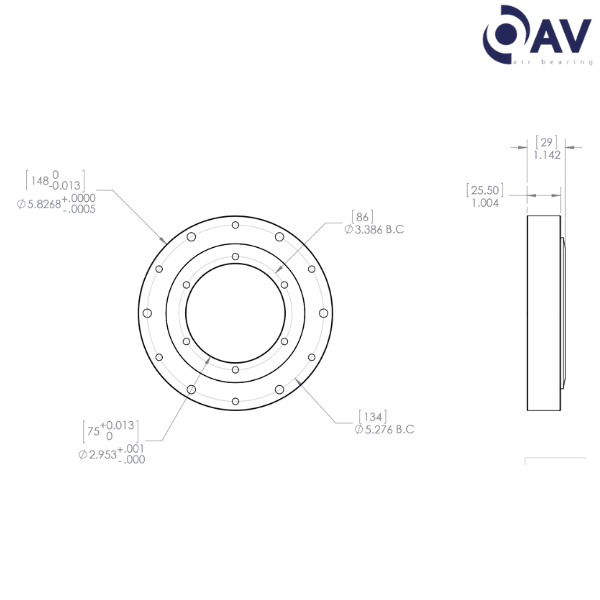

Bearings Inside Diameter (mm) - 75 (+0.013 to -0.00)
Bearings Outside Diameter (mm) - 148 (+0.00 to -0.013)
Bearing Width (mm) - 29
Weight (kg) - 0.916
Shaft Diameter (mm) - 75
Housing Bore size Light Press Fit Method (mm) - 148 (+0.013 to -0.00)
Flow Rate (SCFH) - 25.6

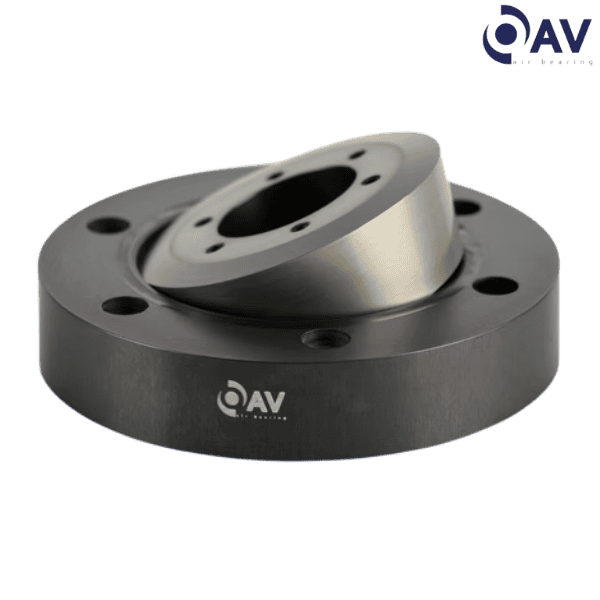

**Images are for representation purposes only
