Description
Brand - OAV
Item Number - OAV-TPR25MX OAV
Category - Tapered Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - Through Shaft Cross-hole
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Stiffness (lb/μ in) - 0.35
Maximum Pitch Moment (lbs-in) - 23
Maximum Radial Load (lbs) - 68.2
Maximum Axial Load (lbs) - 40.9
Total Indicated Runout [TIR] (millinths in) - ± 1
Axial and Radial Error Motion (μin) - 0.9
Weight (lb) - 0.27
Metric :
Inner Diameter (mm) - 25
Radial Stiffness (N/μ m) - 62
Maximum Pitch Moment (N-m) - 2.6
Maximum Radial Load (N) - 303.5
Maximum Axial Load (N) - 182
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (µm) - 0.023

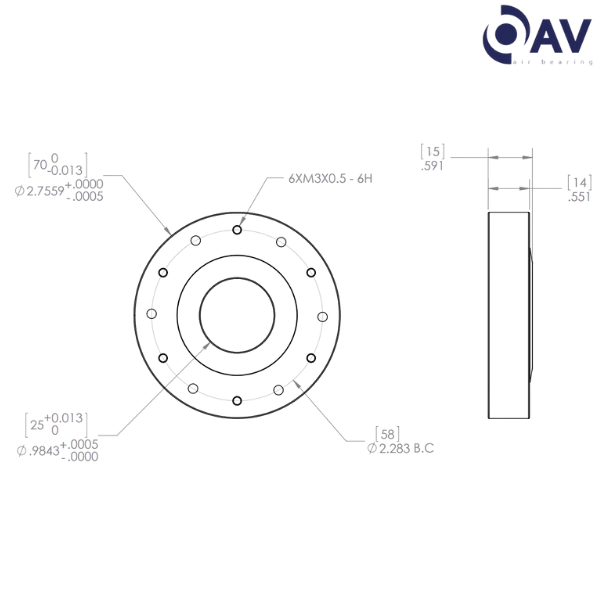

Bearings Inside Diameter (mm) - 25 (+0.01 to -0.00)
Bearings Outside Diameter (mm) - 70 (+0.00 to -0.013)
Bearing Width (mm) - 15
Weight (kg) - 0.121
Shaft Diameter (mm) - 25
Housing Bore size Light Press Fit Method (mm) - 44.48 (+ 0.02 to -0.00)
Flow Rate (SCFH) - 5.39

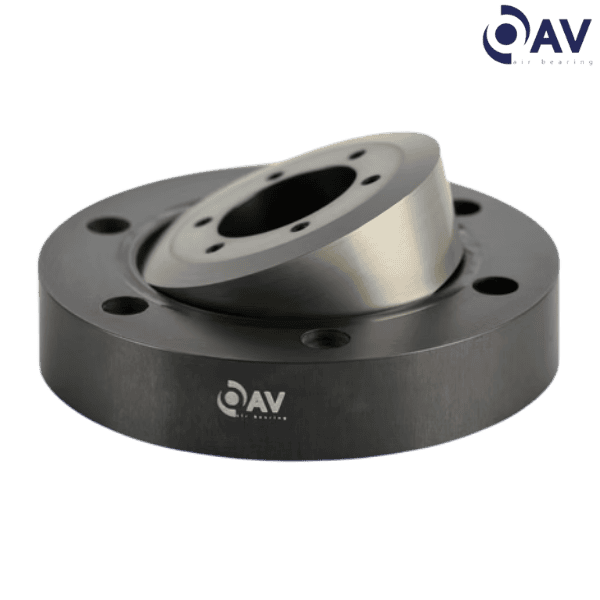

**Images are for representation purposes only
