Description
Brand - OAV
Item Number - OAV-TPR25M OAV

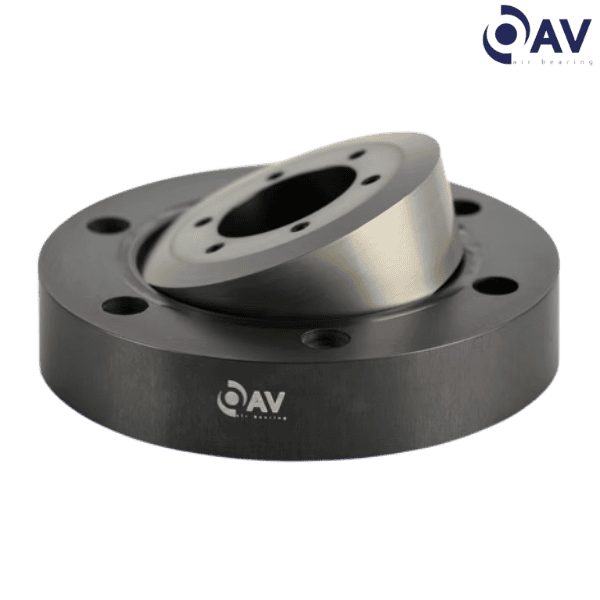

Category - Tapered Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon

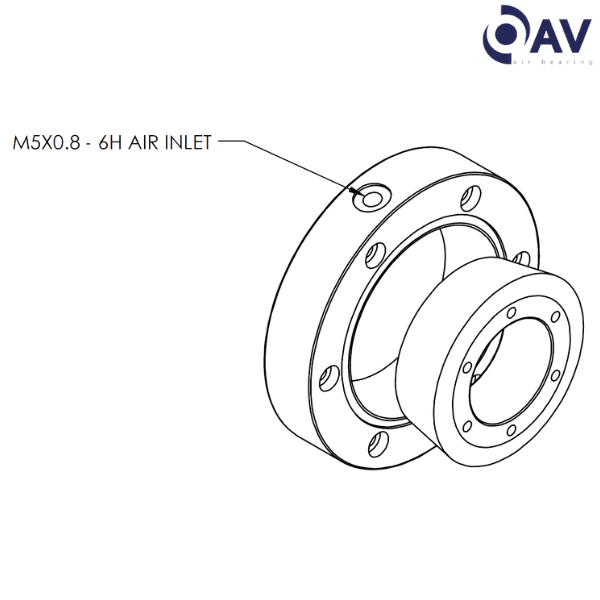

Pressure Port Threads - M5 x 0.8
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Maximum Radial Load (lbs) - 71.5
Maximum Axial Load (lbs) - 42.9
Total Indicated Runout [TIR] (millionths in) - ± 1
Axial and Radial Error Motion (μin) - 0.9
Weight (lb) - 0.28
Metric :
Inner Diameter (mm) - 25
Stiffness (N/μm) - 64
Maximum Pitch Moment (N-m) - 2.8
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (μm) - 0.023

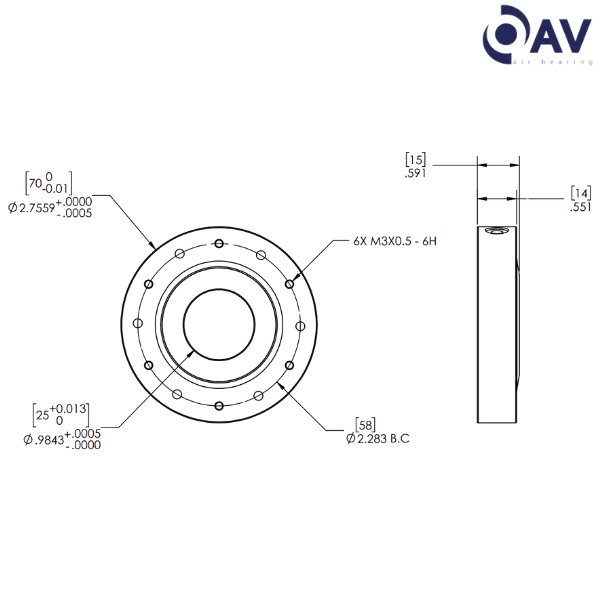

Bearings Inside Diameter (mm) - 25 (+0.013 to -0.00)
Bearings Outside Diameter (mm) - 70 (+0.00 to -0.013)
Bearing Width (mm) - 15
Weight (kg) - 0.127
Shaft Diameter (mm) - 25
Housing Bore size Light Press Fit Method (mm) - 70 (+0.013 to -0.00)
Flow Rate (SCFH) - 5.66
** Images are for representation purposes only
