Description
Brand - OAV
Item Number - OAV-TPR20MX OAV
Category - Tapered Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - Through Shaft Cross-Hole
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Stiffness (lb/μ in) - 0.19
Maximum Pitch Moment (lbs-in) - 17.7
Maximum Radial Load (lbs) - 63.8
Maximum Axial Load (lbs) - 38.3
Total Indicated Runout [TIR] (millinths in) - ± 1
Axial and Radial Error Motion (μin) - 0.9
Weight (lb) - 0.28
Metric :
Inner Diameter (mm) - 20
Radial Stiffness (N/μ m) - 33
Maximum Pitch Moment (N-m) - 2
Maximum Radial Load (N) - 283.9
Maximum Axial Load (N) - 170.4
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (µm) - 0.023

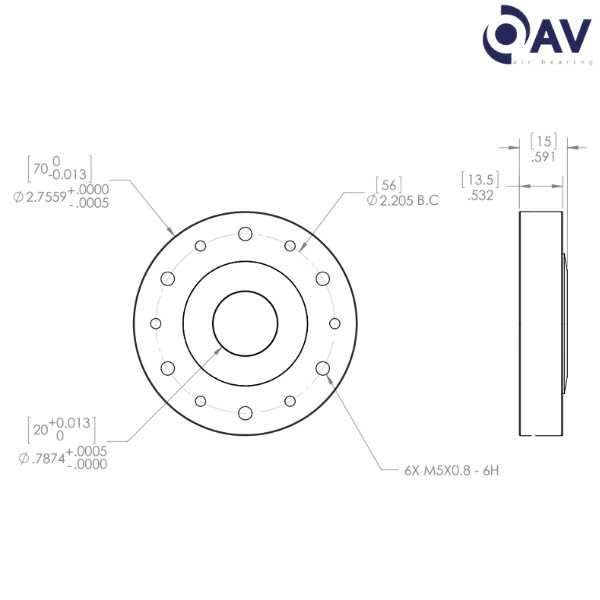

Bearings Inside Diameter (mm) - 20 (+0.013 to -0.000)
Bearings Outside Diameter (mm) - 70 (+0.00 to -0.013)
Bearing Width (mm) - 20
Weight (kg) - 0.127
Shaft Diameter (mm) - 20
Housing Bore size Light Press Fit Method (mm) - 70 (+0.013 to -0.00)
Flow Rate (SCFH) - 5.04

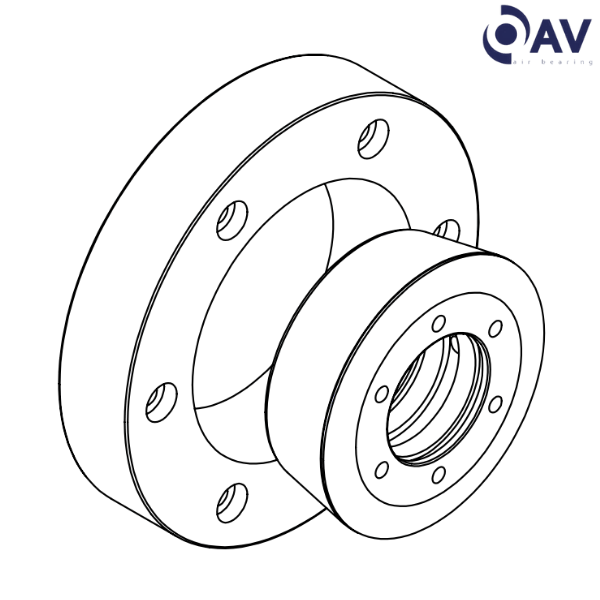

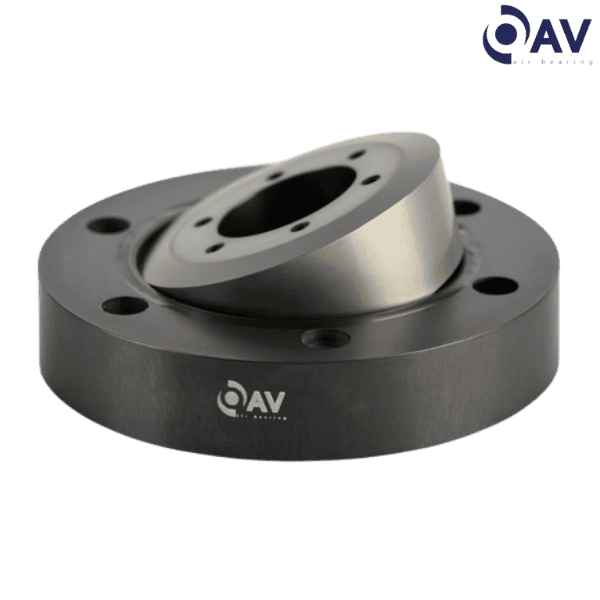

**Images are for representation purposes only
