Description
Brand - OAV
Item Number - OAV-TPR13MX OAV
Category - Tapered Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon
Pressure Port Threads - Through Shaft Cross-Hole
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Stiffness (lb/μ in) - 0.12
Maximum Pitch Moment (lbs-in) - 8
Maximum Radial Load (lbs) - 43.2
Maximum Axial Load (lbs) - 25
Total Indicated Runout [TIR] (millinths in) - ± 1
Axial and Radial Error Motion (μin) - 0.9
Weight (lb) - 0.13
Metric :
Inner Diameter (mm) - 13
Radial Stiffness (N/μ m) - 21
Maximum Pitch Moment (N-m) - 0.9
Maximum Radial Load (N) - 192.2
Maximum Axial Load (N) - 111.3
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (µm) - 0.023

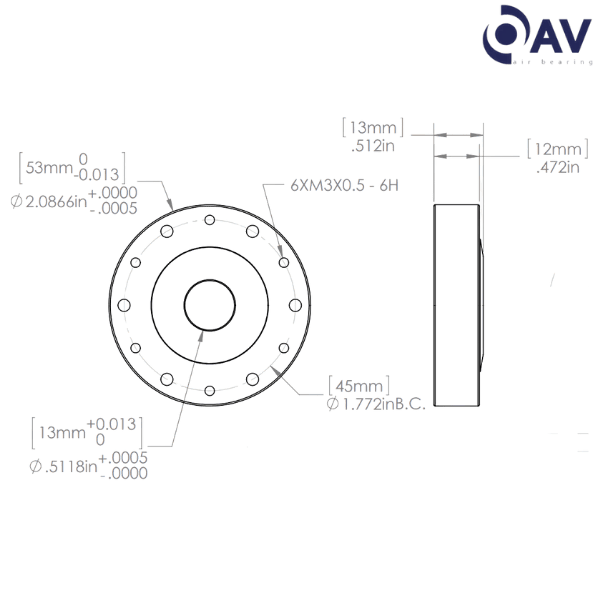

Bearings Inside Diameter (mm) - 13 (+0.013 to -0.000)
Bearings Outside Diameter (mm) - 53 (+0.00 to -0.013)
Bearing Width (mm) - 13
Weight (kg) - 0.037
Shaft Diameter (mm) - 13
Housing Bore size Light Press Fit Method (mm) - 53 (+0.013 to -0.00)
Flow Rate (SCFH) - 3.42

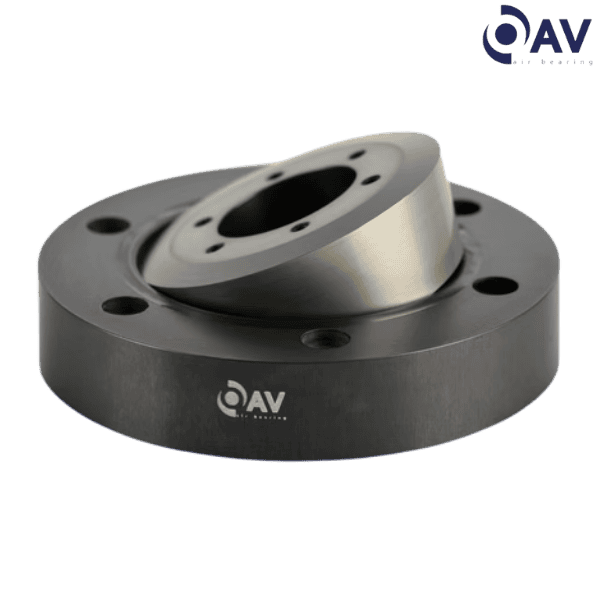

**Images are for representation purposes only
