Description
Brand - ZEN
Item Number - NUTR50110 ZEN
Category - Yoke Type Track Rollers (NUTR Series)
Inner Diameter (d) mm - 50
Outer Diameter (D) mm - 110
Width (B) mm - 32
C (mm) - 30
rs (mm) - 1.1
d1 (mm) - 60
Static Load Rating (N) - 100000
Dynamic Load Rating (N) - 161000
Limiting Speed - 1000
Weight (kg) - 1.69
Radial Play - 0.03-0.06
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

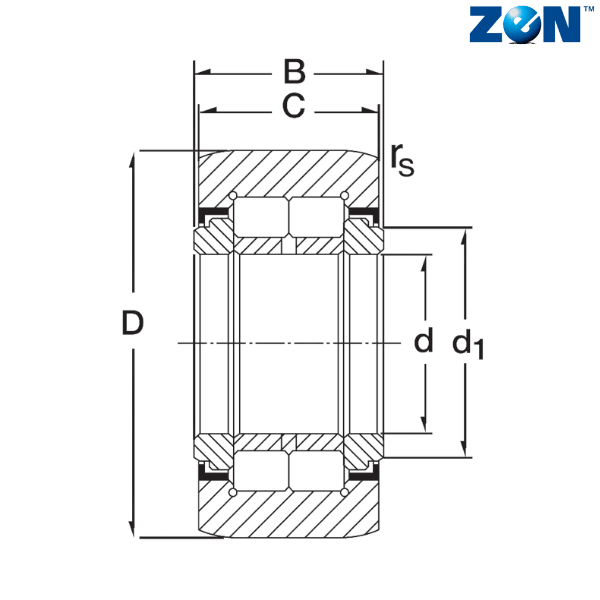

** Images are for representation purposes only
