Description
Brand - ZEN
Item Number - NUTR45100 ZEN
Category - Yoke Type Track Rollers (NUTR Series)

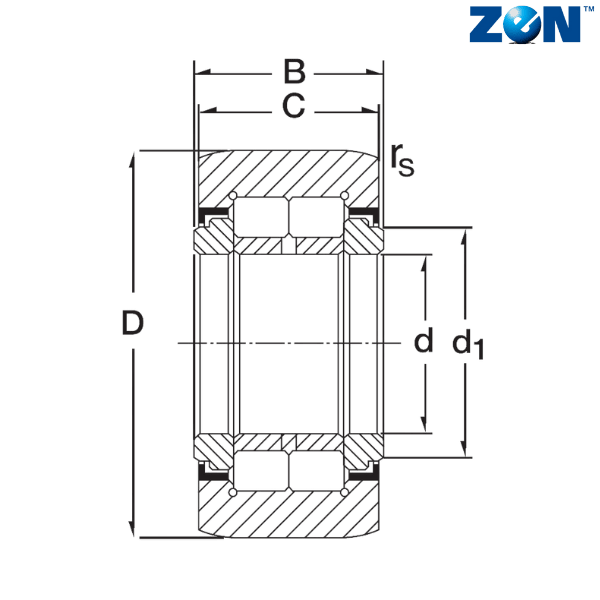

Inner Diameter (d) mm - 45
Outer Diameter (D) mm - 100
Width (B) mm - 32
C (mm) - 30
rs (mm) - 1.1
d1 (mm) - 55
Static Load Rating (N) - 95000
Dynamic Load Rating (N) - 147000
Limiting Speed - 1000
Weight (kg) - 1.396
Radial Play - 0.03-0.06
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
