Description
Brand - ZEN
Item Number - NUTR4090 ZEN
Category - Yoke Type Track Rollers (NUTR Series)

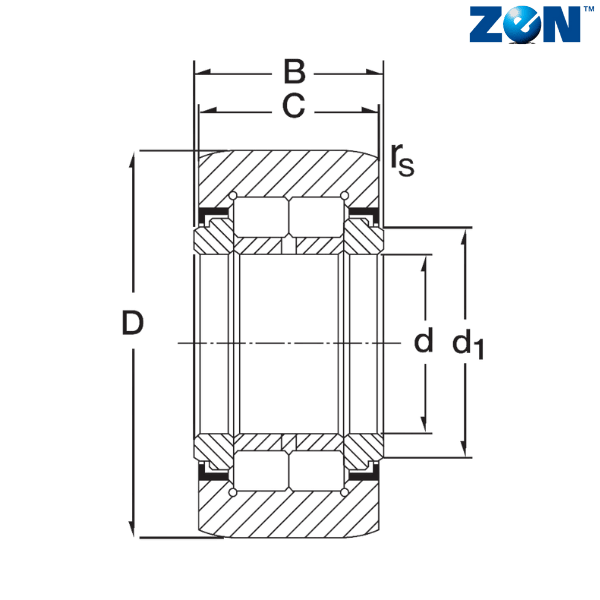

Inner Diameter (d) mm - 40
Outer Diameter (D) mm - 90
Width (B) mm - 32
C (mm) - 30
rs (mm) - 1.1
d1 (mm) - 51
Static Load Rating (N) - 90000
Dynamic Load Rating (N) - 134000
Limiting Speed - 2000
Weight (kg) - 1.129
Radial Play - 0.025-0.05
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
