Description
Brand - ZEN
Item Number - NUTR35 ZEN

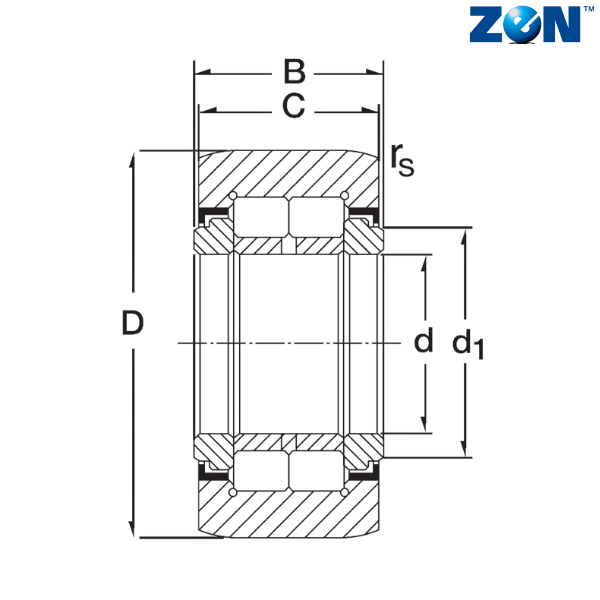

Category - Yoke Type Track Rollers (NUTR Series)
Inner Diameter (d) mm - 35
Outer Diameter (D) mm - 72
Width (B) mm - 29
C (mm) - 28
rs (mm) - 1.1
d1 (mm) - 44
Static Load Rating (N) - 65000
Dynamic Load Rating (N) - 93000
Limiting Speed - 2000
Weight (kg) - 0.63
Radial Play - 0.025-0.05
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
