Description
Brand - ZEN
Item Number - NUTR3072 ZEN
Category - Yoke Type Track Rollers (NUTR Series)
Inner Diameter (d) mm - 30
Outer Diameter (D) mm - 72
Width (B) mm - 29
C (mm) - 28
rs (mm) - 1
d1 (mm) - 38
Static Load Rating (N) - 59000
Dynamic Load Rating (N) - 79000
Limiting Speed - 3000
Weight (kg) - 0.697
Radial Play - 0.002-0.045
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

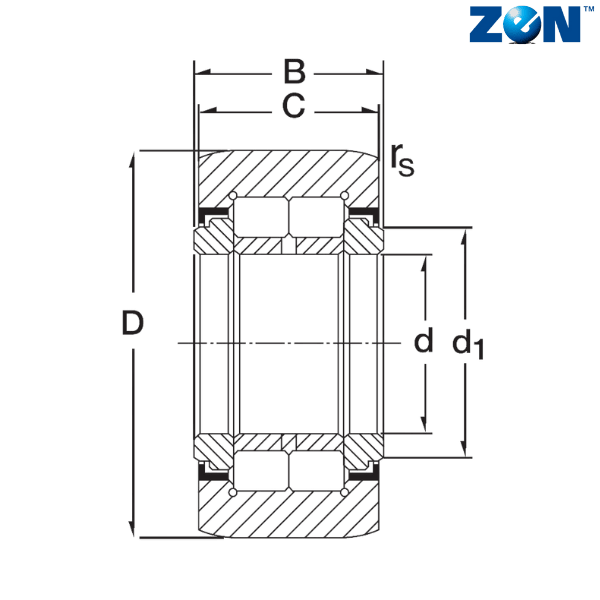

** Images are for representation purposes only
