Description
Brand - ZEN
Item Number - NUTR2562 ZEN

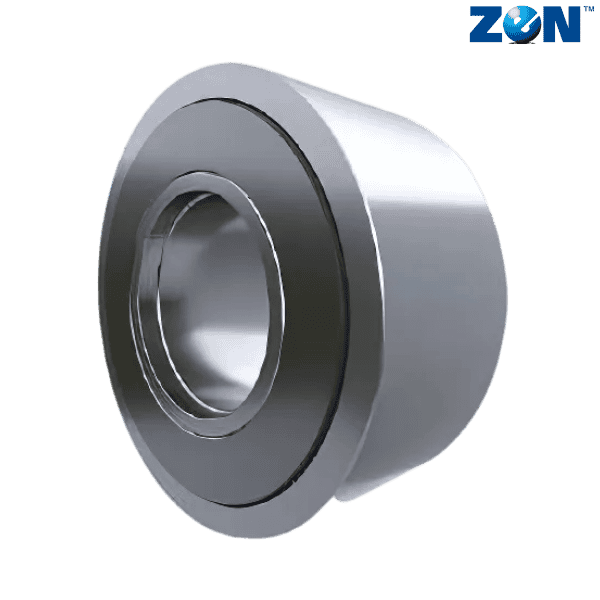

Category - Yoke Type Track Rollers (NUTR Series)

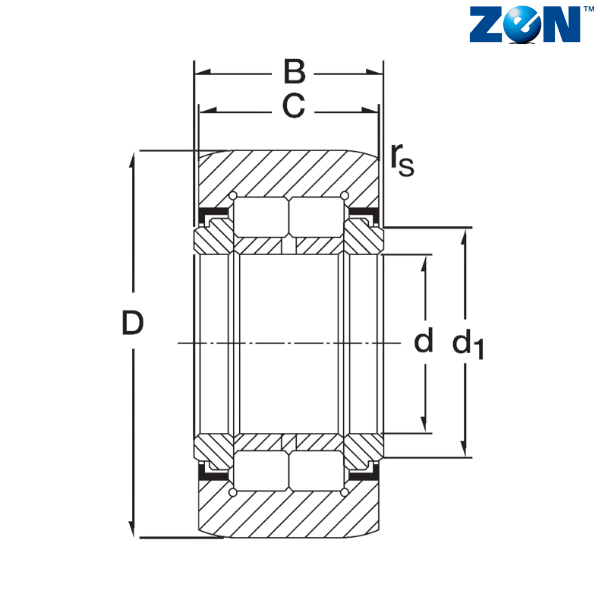

Inner Diameter (d) mm - 25
Outer Diameter (D) mm - 62
Width (B) mm - 25
C (mm) - 24
rs (mm) - 1
d1 (mm) - 31
Static Load Rating (N) - 43500
Dynamic Load Rating (N) - 60000
Limiting Speed - 3000
Weight (kg) - 0.45
Radial Play - 0.002-0.045
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
