Description
Brand - ZEN
Item Number - NUTR2052 ZEN
Category - Yoke Type Track Rollers (NUTR Series)

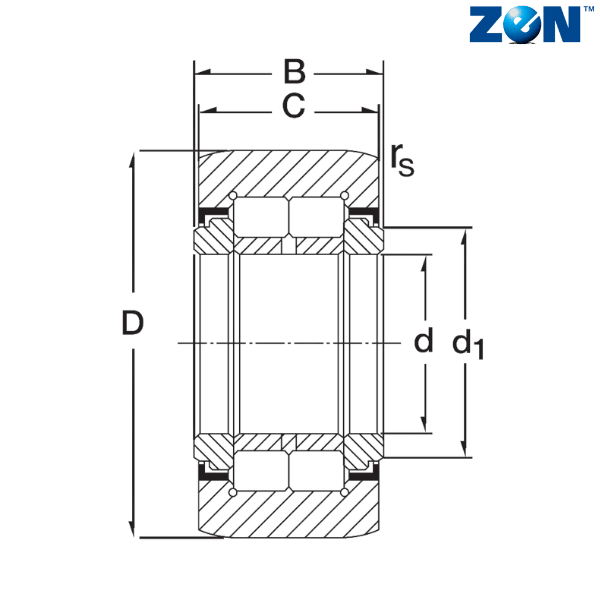

Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 52
Width (B) mm - 25
C (mm) - 24
rs (mm) - 1
d1 (mm) - 27
Static Load Rating (N) - 39000
Dynamic Load Rating (N) - 50000
Limiting Speed - 4000
Weight (kg) - 0.321
Radial Play - 0.002-0.045
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
