Description
Brand - ZEN
Item Number - NUTR17 ZEN
Category - Yoke Type Track Rollers (NUTR Series)

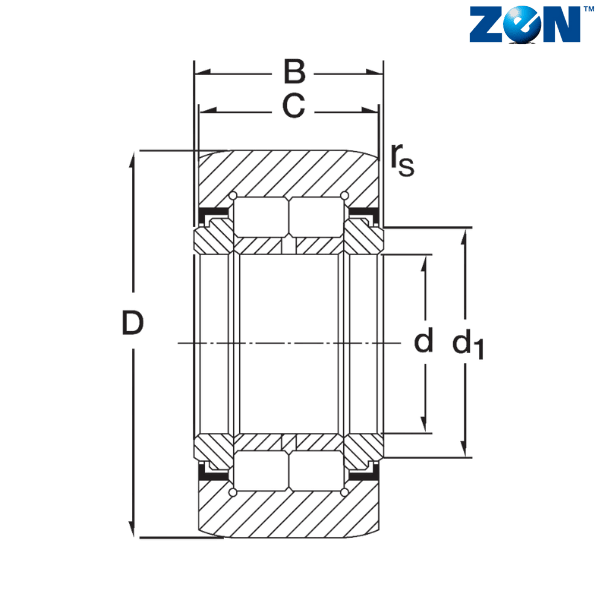

Inner Diameter (d) mm - 17
Outer Diameter (D) mm - 40
Width (B) mm - 21
C (mm) - 20
rs (mm) - 1
d1 (mm) - 22
Static Load Rating (N) - 24800
Dynamic Load Rating (N) - 31000
Limiting Speed - 55000
Weight (kg) - 0.147
Radial Play - 0.002-0.045
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
